  • Asrock B550M-HDV, AMD B550, AM4, Micro ATX, 2 DDR4, VGA, DVI, HDMI, PCIe4, M.2

  • SKU: B550M-HDV
  • EAN: 4710483931635

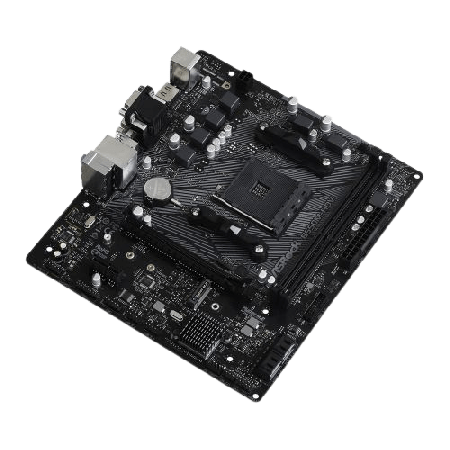

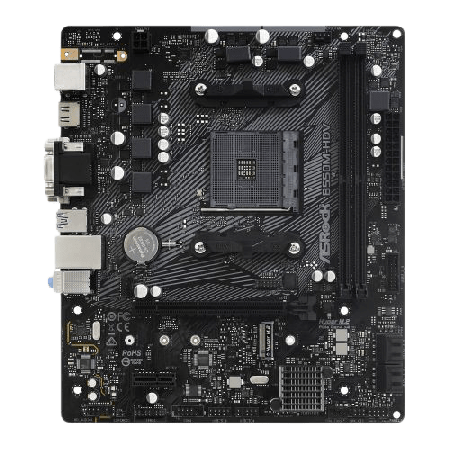

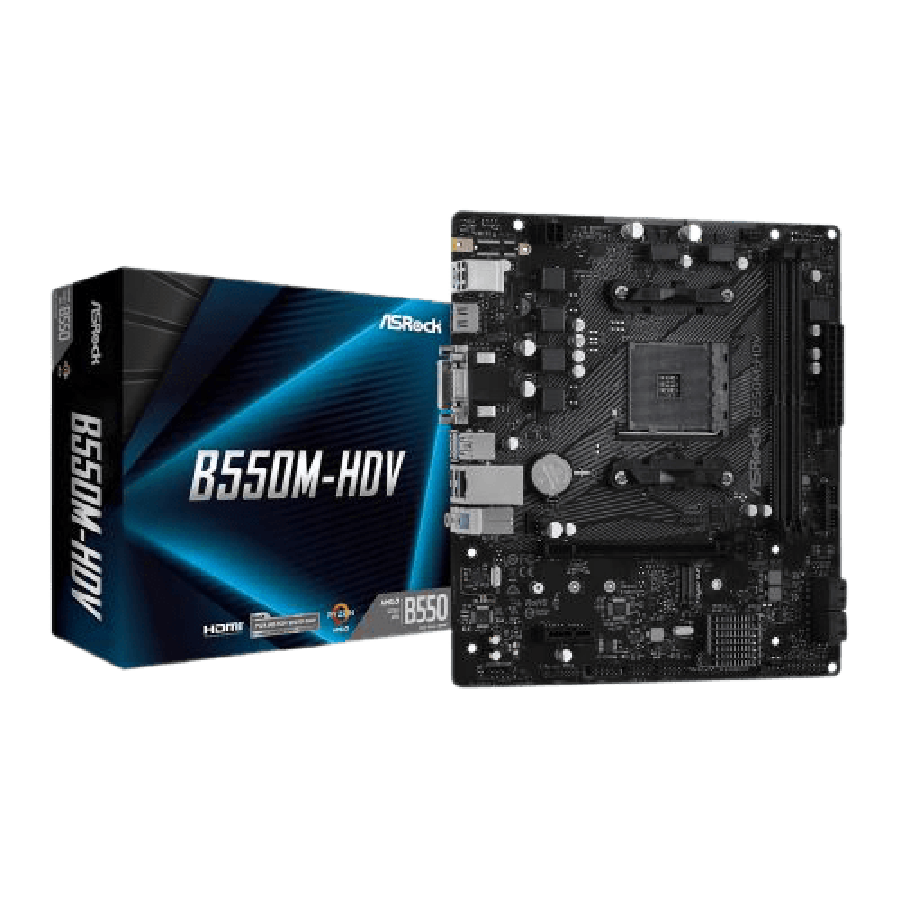

  • Asrock B550M-HDV
  • Motherboard Type: Desktop
  • Socket: AMD AM4
  • Chipset: AMD B550
  • Maximum Memory: 64GB
  • 3 Years Warranty
$159.23
  • SHARE:
  •
  •
  •
  •   TrustPilot
WHY BUY WITH SAFEPCDIRECT ?
Certificate 1
Certificate 2
Certificate 3
Certificate 4

 Product Details

MotherBoard Type

Desktop
Socket
AMD AM4
ChipsetAMD B550
Maximum Memory64GB
RAM Speed
4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
Memory TypeDDR4 (Dual Channel)
Storage

4 x SATA3 III
1 x M.2 (2242/2260/2280) - SATA & PCIe

Graphics


Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU

Graphics Port1 x VGA
1 x DVI-D
1 x HDMI
USB Port Supported

6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)

Audio7.1 CH HD Audio (Realtek ALC887 Audio Codec
Internal I/O connectors

1 x SPI TPM
1 x COM Port
1 x Chassis Intrusion and Speaker
1 x CPU Fan
2 x Chassis Fan
1 x 24 pin ATX
1 x 4 pin 12V
1 x Front Audio
2 x USB 2.0
1 x USB 3.2 Gen1

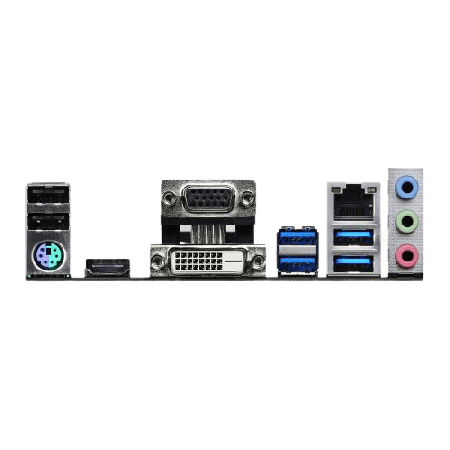

Back Panel I/o Ports

1 x PS/2 Mouse/Keyboard
1 x D-Sub
1 x DVI-D
1 x HDMI
2 x USB 2.0
4 x USB 3.2 Gen1
1 x RJ-45 LAN
HD Audio Jacks

PCL Express

1 x PCIe 4.0 x16
1 x PCIe 3.0 x16
1 x PCIe 3.0 x1

LANGB LAN
AccessoriesQuick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket
Package Weight0.8440 kg
Warranty3 Years
Condition New

  • Supports 3rd Gen AMD AM4 Ryzen / Future AMD Ryzen Processors
  • 6 Power Phase Design
  • Supports DDR4 4733+ (OC)
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: HDMI, DVI-D, D-Sub
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
  • 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
  • 6 USB 3.2 Gen1 (2 Front, 4 Rear)
  • Gigabit LAN



6 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.


Premium 50A Power Choke

Compared to traditional chokes, ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.


Hyper M.2 (PCIe Gen4 x4)

Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.


HDMI 4k @60Hz

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

Super Alloy Motherboard Design

Premium 50A Power Choke
Compared to traditional chokes, ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.



3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.


Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.


Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

ManufacturerAsrock
ColorBlack
Graphics ProcessorAMD
Motherboard Form FactorMicro ATX
ChipsetNo
Motherboard TypeDesktop
Maximum Memory64GB
Processor SocketSocket AM4
RAM TechnologyDDR4 (Dual Channel)
RAM Slots2 X DIMM
ConditionBrand New
RefurbishedNo
