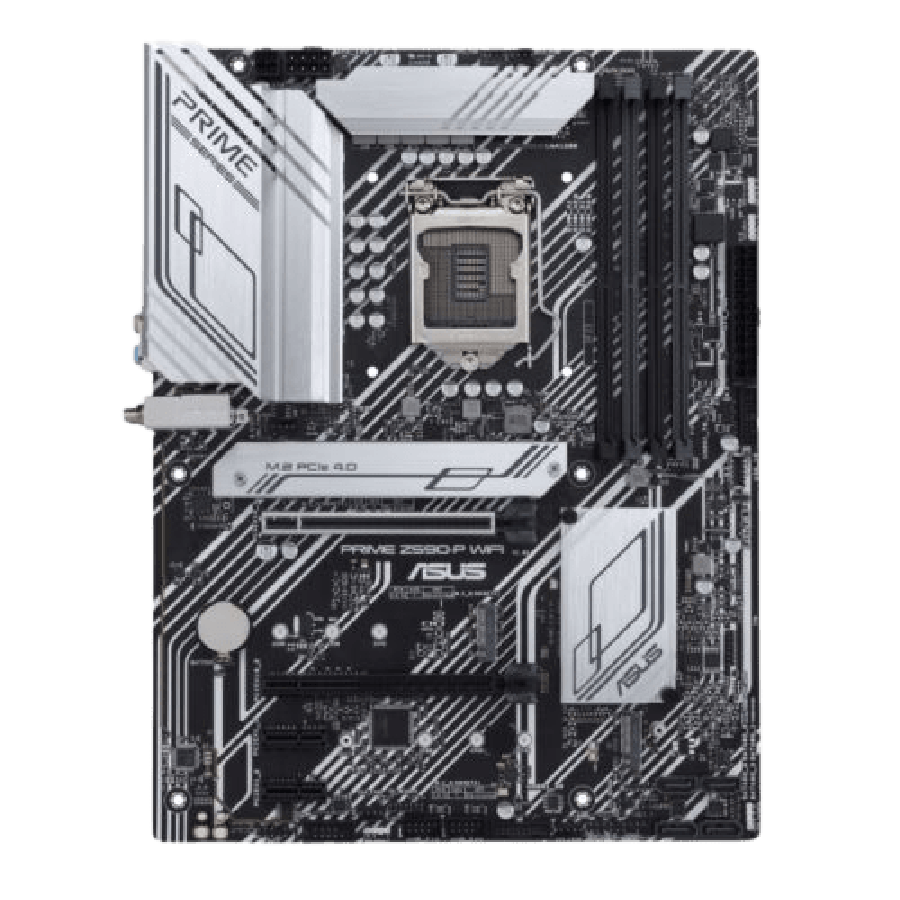

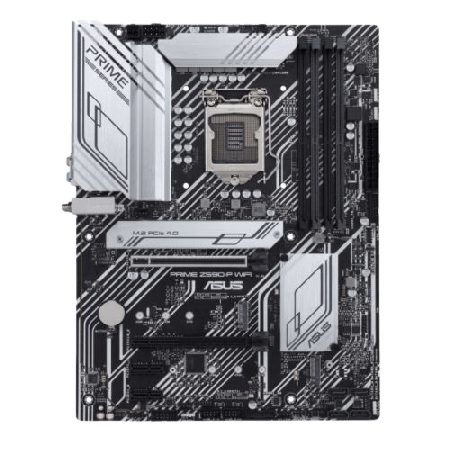

  • Asus PRIME Z590-P WIFI/ Intel Z590/ 1200/ ATX/ 4 DDR4/ HDMI/ DP/ AX Wi-Fi/ 2.5G LAN/ RGB/ 3x M.2

  • SKU: 90MB1810-M0EAY1
  • EAN: 8419068457404
  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: Intel 1200
  • Chipset: Intel Z590
  • 3 years Warranty
$326.05
  • SHARE:
  •
  •
  •
  •   TrustPilot
WHY BUY WITH SAFEPCDIRECT ?
Certificate 1
Certificate 2
Certificate 3
Certificate 4

Product Details

Product Description
Asus PRIME Z590-P WIFI, Intel Z590, 1200, ATX, 4 DDR4, HDMI, DP, AX Wi-Fi, 2.5G LAN, RGB, 3x M.2
Type
Desktop
SocketIntel 1200
ChipSet
Intel Z590
RAM TechnologyDDR4 (Dual Channel)
Maximum Memory128GB DDR4
RAM Speeds
Up to 5133(OC)
RAM Slots4 x DIMM
Form FactorATX
GraphicsIntegrated Graphics*

*Graphics specifications may vary between CPU types
Graphics Port

1 x HDMI
1 x DisplayPort

Internal I/O connectors
1 x 4-pin CPU Fan
1 x 4-pin AIO Pump
3 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x 4-pin +12V
3 x M.2 slots (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1
2 x USB 2.0
2 x AURA Addressable Gen2

2 x AURA RGB
1 x Clear CMOS
1 x COM Port
1 x Front Audio
1 x SPI TPM (14-1pin)
1 x 20-5pin System Panel
1 x Thunderbolt
Back Panel I/o Ports1 x USB 3.2 Gen2x2 Type-C
1 x USB 3.2 Gen2 Type-A
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x DisplayPort
1 x HDMI port
1 x ASUS Wi-Fi Module
1 x Realtek 2.5Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out
1 x PS/2 Keyboard/Mouse combo
USB Ports Supported1 x USB 3.2 Gen2x2 Type-C (at back)
1 x USB 3.2 Gen2 Type-A (at back)
6 x USB 3.2 Gen1 Type-A (2 at back, 4 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)
1 x USB 3.2 Gen1 connector Type-C at mid-board
AudioRealtek ALC897 7.1 Surround Sound High Definition Audio CODEC
LAN2.5GB LAN
WirelessIntel Wi-Fi 6
Bluetooth
Storage4 x SATA III
1 x M.2 (2242/2260/2280/22110) - PCIe
1 x M.2 (2242/2260/2280) - SATA & PCIe
1 x M.2 (2242/2260/2280/22110) - SATA & PCIe
PCL Express
1 x PCIe 4.0/3.0 x16
1 x PCIe 3.0 x16
2 x PCIe 3.0 x1
Additional FeaturesSee Oerview
Package TypeRetail
Package Weight
1.6330 kg
Warranty3 Years
Condition New



Intel® Z590 (LGA 1200) ATX motherboard with PCIe® 4.0, three M.2 slots, 11 DrMOS power stages, HDMI®, DisplayPort™, SATA 6 Gbps, Intel® WiFi 6, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 support, and Aura Sync RGB lighting


  • Intel® LGA 1200 socket: Ready for 11th and 10th gen Intel® Core™ processors
  • Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8-pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
  • Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
  • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
  • Next-gen connectivity: Intel® WiFi 6, PCIe® 4.0, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header support
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z590-P WIFI provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.





Tune It Your Way

Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z590 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.





Cool to the Core

Prime Z590 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.





M.2 Heatsink

An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws and can be moved to other M.2 slot.





Build on a Solid Foundation

Prime Z590 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel Core processors. ASUS Z590 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.





Robust Power Design

Stable power is essential to extract every last bit of performance out of 11th Generation Intel Core processors. Prime Z590-P WIFI is geared to cater to the demands of these high-core count CPUs.





Small Details Make a Big Difference

Prime Z590 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.





Aura Sync

Outshine the Competition
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips connected to the onboard RGB headers - and it can all be synced with an ever-growing portfolio of Aura-capable hardware.



ManufacturerAsus
ColorNo
Graphics ProcessorIntel
Motherboard Form FactorMicro ATX
ChipsetIntel Z590
Motherboard TypeDesktop
Maximum Memory128GB
Processor SocketIntel 1200
RAM TechnologyDDR4 (Dual Channel)
RAM Slots4 X DIMM
ConditionBrand New
RefurbishedNo
