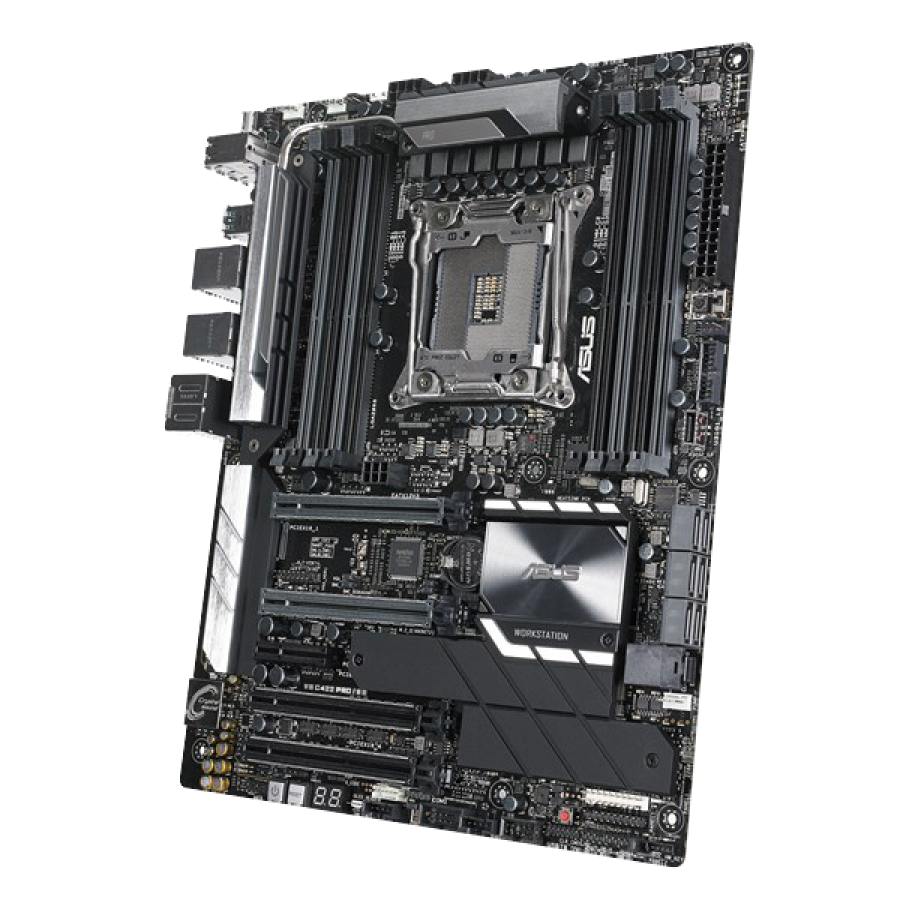

  • Asus WS C422 PRO/SE, Workstation, Intel C422, 2066, ATX, DDR4, 5 x PCIe, Dual M.2, Dual LAN, RGB Lighting

  • SKU: AUMBC422PROSE-WS
  • EAN: 4710000000000
  • Type: Server / Workstation
  • Socket: 2066
  • Chipset: Intel C422
  • Maximum Memory: 512GB
  • Intel HD Graphics
  • 3 Years Warranty
£371.32
  • SHARE:
  •
  •
  •
  •   TrustPilot
WHY BUY WITH SAFEPCDIRECT ?
Certificate 1
Certificate 2
Certificate 3
Certificate 4

Product Details

Type
Server / Workstation
Socket2066
ChipsetIntel C422
Maximum Memory512GB DDR4
RAM Speed
2666/2400/2133 MHz
Memory TypeDDR4 (Quad Channel)
Storage6 x SATA III
1 x M.2 x4 (2242/2260/2280/22110) - PCIe
1 x M.2 x4 (2242/2260/2280) - SATA & PCIe
1 x U.2
GraphicsIntel HD Graphics
Multi GPU SupportSupports NVIDIA 2-Way SLI
Supports AMD 3-Way CrossFireX
Graphics Port1 x VGA
1 x HDMI
1 x DisplayPort 1.2
Audio
Realtek® ALC S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
USB Port Supported

2 x USB 3.1 Gen 2 (Type-A & C) , 6 x USB 3.1 Gen 1, 6 x USB 2.0 ,

1 x USB 3.1 Gen 2 front panel connector

Internal I/O connectors1 x Aura Addressable Strip
1 x AAFP
1 x Aura RGB Strip
1 x USB 3.1 Gen 1
1 x USB 2.0
2 x M.2
1 x TPM
6 x SATA 6Gb/s
1 x VROC_HW_Key
2 x CPU Fan
1 x AIO_PUMP
1 x Thunderbolt
1 x 24-pin EATX
2 x 8-pin ATX 12V
1 x 5-pin EXT_FAN
1 x Thermal sensor
1 x U.2
3 x System panel
1 x Front fan
1 x Rear fan
1 x COM port
1 x Aspeed VGA
1 x USB 3.1 Gen 2 front panel
1 x CPU_OV
1 x PUMP Fan
1x 6-pin ATX 12V
Back Panel I/o Ports2 x LAN (RJ45)
2 x USB 3.1 Gen 2 A & C
4 x USB 3.1 Gen 1
4 x USB 2.0
1 x Optical S/PDIF out
1 x USB BIOS Flashback Button
1 x 8-channel Audio I/O
PCL Express
2 x PCIe 3.0 x16 (x16 mode)
2 x PCIe 3.0 x16 (Single at x16dual at x8/x8)
1 x PCIe 3.0 x4 (x4 mode)
LANDual GB LAN
ButtonsClear CMOS , Reset , Power On , MemOk
Package Weight2.8000 kg
Warranty3 Years
Condition New


ASUS WS C422 PRO/SE LGA2066 ECC DDR4 M.2 U.2 C422 ATX Motherboard for Intel® Xeon® W-Series Processors with SafeSlot, Dual Gigabit LAN and USB 3.1 Type A / C

  • Designed for 7th generation LGA2066 socket Intel® W-Series processors with dual M.2, front panel USB 3.1 Gen2, Dual Intel® Gigabit LAN, support for ECC DDR4, Thunderbolt 3, Intel® VROC and Intel® Optane™ Memory compatibility
  • Next-gen transfer speeds with up to 32Gbps dual M.2 and U.2, plus up to 10Gbps USB 3.1 Type-A and Type-C connections
  • Patent-pending SafeSlot features an injection molding process that integrates metal framing for stronger, firmly anchored PCIe slots built for heavyweight GPUs, ideal for supporting 3-Way NVIDIA® SLI® or AMD® CrossfireX™
  • Industry-leading 8-channel HD audio enhanced by ASUS exclusive Realtek S1220A featuring Crystal Sound 3, DTS Headphone:X and driven by Japanese capacitors for warm, immersive sound
  • AURA Sync RGB lighting via Addressable RGB header features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of AURA Sync enabled products
  • Complete IT Infrastructure Management with ASMB9 Out-of-band remote management and In-band ASUS Control Center providing a complete server management solution reducing IT operating costs with features like remote BIOS updating, monitoring multiple systems via mobile device, and one-click software updates/dispatching.
ManufacturerAsus
ColorNo
Graphics ProcessorIntel
Mothrboard Form FactorATX
ChipsetIntel C422
Motherboard TypeServer/Workstation
Maximum Memory512GB
Processor Socket2066
RAM TechnologyDDR4 (Quad Channel)
RAM Slots8 X DIMM
ConditionBrand New
RefurbishedNo
