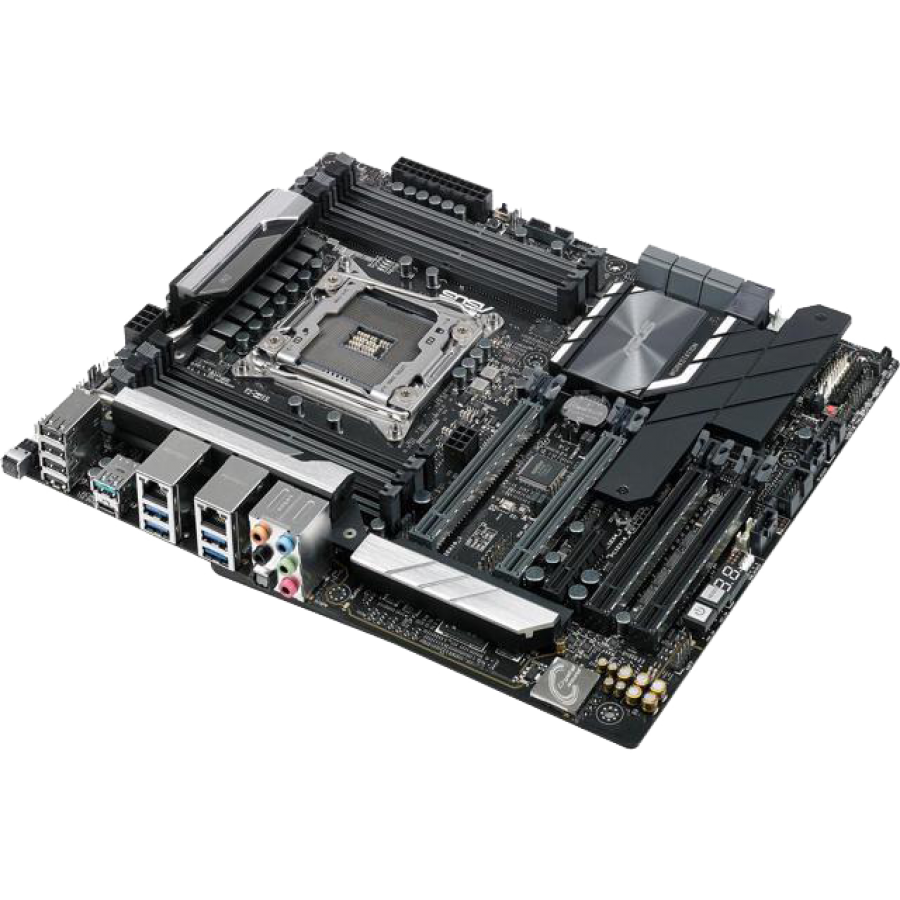

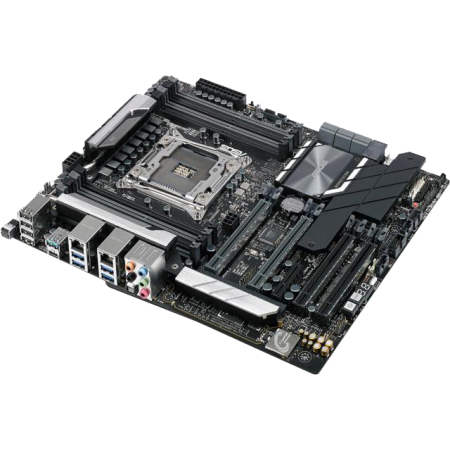

  • Asus X299-WS PRO/SE, Workstation, Intel X299, 2066, ATX, DDR4, Dual M.2, U.2, Dual LAN, Embedded iKVM Module

  • SKU: 90SW00A0-M0EAY0
  • EAN: 4712900813630
  • Motherboard Type: Desktop
  • Socket: 2066
  • Chipset: Intel X299
  • Maximum Maemory: 128GB
  • Intel HD Graphics
  • 3 Years Warranty
$620.51
Out of Stock
    • SHARE:
    •
    •
    •
    •   TrustPilot
    WHY BUY WITH SAFEPCDIRECT ?
    Certificate 1
    Certificate 2
    Certificate 3
    Certificate 4

    Product Details

    Type
    Server / Workstation
    Socket1151 - Coffee Lake
    Chip Set
    Intel X299
    Maximum Memory128GB DDR4 (Quad Channel)
    RAM Speed

    4266+(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC)

    3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) /

    2800(OC) / 2666 / 2400 / 2133 MHz

    Memory TypeDDR4 (Dual Channel)
    Storage6 x SATA III
    1 x M.2 Socket (2242/2260/2280/22110) - PCIe
    1 x M.2 Socket (2242/2260/2280) - SATA & PCIe
    1 x U.2
    GraphicsIntegrated HD Graphics
    Multi GPU SupportSupports NVIDIA 3-Way SLI Technology
    Supports AMD 3-Way CrossFireX™ Technology
    Graphics Port1 x HDMI
    1 x DisplayPort 1.2
    Audio

    Realtek ALC S1220A 7.1-Channel High Definition

    AudioCODEC featuring Crystal Sound 3

    USB Ports

    2 x USB 3.1 Gen 2 ,8 x USB 3.1 Gen 1,6 x USB 2.0

    1 x USB 3.1 Gen 2 front panel connector

    Internal I/O connectors1 x USB 3.1 Gen 1
    1 x USB 2.0
    2 x M.2 Socket 3
    1 x TPM header
    6 x SATA 6Gb/s
    1 x VROC_HW_Key
    2 x CPU Fan
    1 x AIO_PUMP
    1 x Thunderbolt
    1 x 24-pin EATX
    2 x 8-pin ATX 12V
    1 x 6-pin EZ_PLUG
    1 x EZ XMP switch
    1 x Front panel
    1 x AUX panel
    1 x MemOK!
    1 x Thermal sensor
    1 x CPU OV
    1 x 5-pin EXT_FAN
    1 x Rear fan
    1 x COM port
    1 x Aura Addressable Strip
    1 x AAFP
    1 x Aura RGB Strip
    1 x USB 3.1 Gen 2 front panel connector
    1 x PANEL2
    1 x PUMP Fan
    1 x PANEL1
    Back Panel I/o Ports2 x LAN (RJ45)
    2 x USB 3.1 Gen 2
    4 x USB 3.1 Gen 1
    4 x USB 2.0
    1 x Optical S/PDIF out
    1 x USB BIOS Flashback Button
    1 x 8-channel Audio I/O
    LANDual GB LAN
    Accessories1 x Vertical M.2 bracket set
    I/O Shield
    1 x COM port cable
    6 x SATA cables
    2 x M.2 screws
    1 x 3-Way SLI bridge
    1 x SLI bridge
    1 x Q-Connector
    1 x 2-port USB module
    1 x Extension Cable for RGB strips (80 cm)
    PCL Express
    2 x PCIe 3.0 x16
    1 x PCIe 3.0 x16 (x4 Bandwidth)
    1 x PCIe 3.0 x16 (x8 Bandwidth)
    1 x PCIe 3.0 x4
    Package Weight 2.3550kg
    Warranty Years
    Condition New



    WS X299 PRO/SE features an embedded iKVM module and is bundled with ASUS Control Center software to provide comprehensive in-band and out-of-band management features for small and mid-size businesses:

    The embedded ASMB9-iKVM module supports remote BIOS updates, fans control, standalone KVM, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics — even if the operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers.

    ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.


    Make your memory go faster

    With optimized trace paths for time-aligned signaling and minimal crosstalk, third-generation ASUS T-Topology offers enhanced memory stability and compatibility, allowing support for memory speeds of DDR4-4133MHz and beyond.


    OC Design – ASUS PRO Clock II Technology

    WS X299 PRO/SE includes a dedicated base-clock (BCLK) generator that extends CPU and memory overclocking margins. This custom solution works in tandem with the TPU to enhance voltage and BCLK overclocking control, providing the flexibility to extract every ounce of performance from the Intel® Core™ X-series processors.



    Multi-GPU support

    With support for both NVIDIA® SLI™ and AMD CrossFireX™ 2/3-WAY configurations, WS X299 PRO/SE enables multi-GPU setups so you can harness the full power of the latest graphics technologies to drive games at 4K and beyond.



    Cooler by Design

    Ultra-efficient VRM Heatsink
    Designed for the powerful Intel Core X-series processor with up to 18 cores, WS X299 PRO/SE features a capable thermal design to ensure maximum performance with no CPU throttling. Consisting of an ultra-efficient VRM heatsink with a metal fin array design that maximizes surface area for heat dissipation, plus two additional heatsinks and a connecting heatpipe to further increase cooling performance, this innovative thermal design ensures WS X299 PRO/SE is always ready to handle any task, no matter how demanding.



    Dual Onboard M.2 & M.2 heatsink

    Perfected cooling for unleashed performance
    WS X299 PRO/SE features dual onboard M.2 slots, each operating at X4 PCI Express 3.0 to provide an abundant 32Gbps of bandwidth. Both slots sit below the X299 chipset and are covered by a heatsink that reduces drive temps by as much as 20°C, ensuring peak performance under all scenarios.


    VROC

    Upgrade your RAID
    Unleash the WS X299 PRO/SE Virtual RAID on CPU (VROC) with the addition of an ASUS Hyper M.2 X16 Card*, which allows you to attach up to four PCIe® 3.0 x16 M.2 drives — for a total bandwidth of up to 128Gbps. PCH-based RAID arrays are bottlenecked by the 32Gbps limit of the DMI bus. VROC obliterates that limit by allowing you to utilise CPU PCIe lanes to configure a bootable RAID array that can transfer data at insane speeds.



    USB 3.1 Gen 2 front-panel connector

    Future-proof connectivity
    WS X299 PRO/SE's front panel USB 3.1 connector is ready for next-gen PC cases and devices.



    USB 3.1 Gen 2 Type-A & Type-C

    Ultimate-speed 10Gbps with USB 3.1 onboard
    With backward-compatible USB 3.1 Gen 2 Type-A™ and reversible USB 3.1 Gen 2 Type-C™ ports, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps.



    Dual Intel® server-class Gigabit LAN

    For more reliable networking, WS X299 PRO/SE features the latest server-class dual Intel® Gigabit LAN ensuring lower CPU utilization and temperatures outstanding performance as well as better support for diverse operating systems. The dual Ethernet ports also support teaming which combines the network links to provide higher throughput or redundancy in case of failure.



    Intel® Core™ X-series

    Intel Core X-series processors (6-core and above): 4-channel (8-DIMM), 44/28 PCI Express 3.0/2.0 lanes. Intel Core X-series processors (4 core): 2-channel (4-DIMM), 16 PCI Express 3.0/2.0 lanes.



    Intel® X299 Chipset

    The Intel X299 chipset supports LGA 2066-socket Intel Core X-series processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, X299 provides a maximum 10 USB 3.1 Gen 1 ports, 8 SATA 6Gbps ports and 32Gbps M.2 support for faster data retrieval.
    ManufacturerAsus
    ColorNo
    Graphics ProcessorIntel
    Motherboard Form FactorATX
    ChipsetIntel X299
    Motherboard TypeServer/Workstation
    Maximum Memory128GB
    Processor Socket2066
    RAM TechnologyDDR4 (Quad Channel)
    RAM Slots8 X DIMM
    ConditionBrand New
    RefurbishedNo
