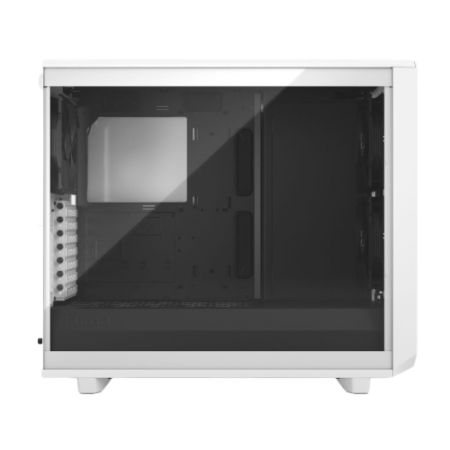

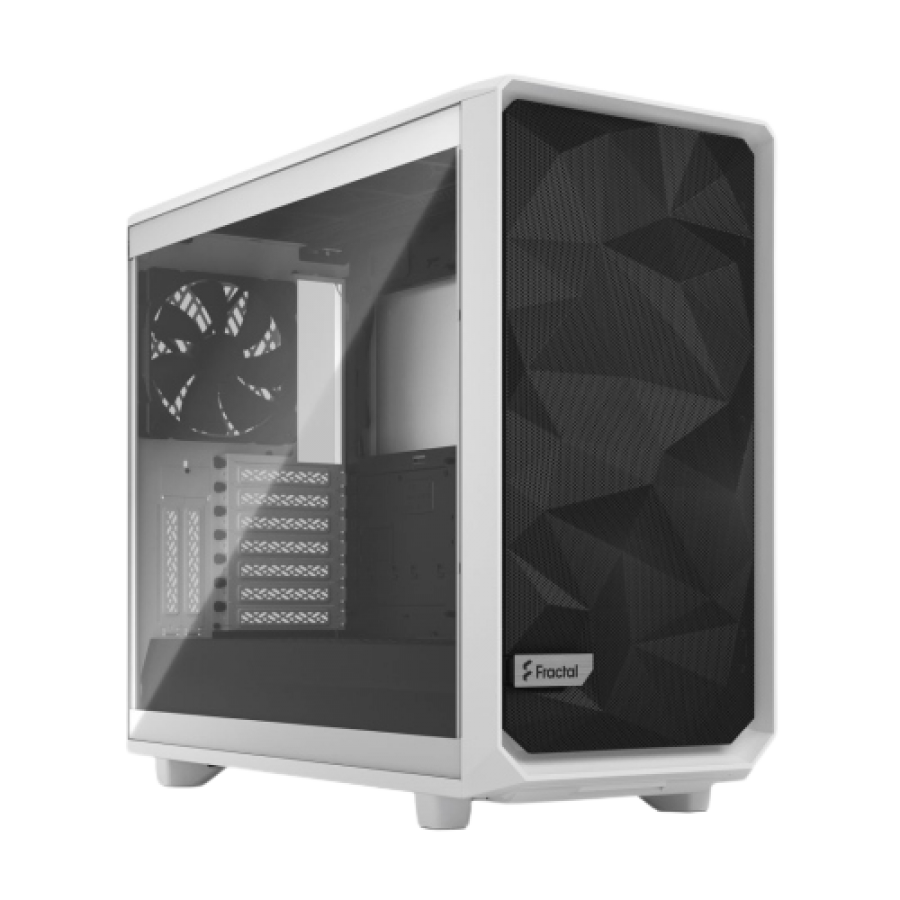

Fractal Design Meshify 2 (White TG) Gaming Case w/ Clear Glass Window, E-ATX, Angular Mesh Front, 3 Fans, Fan Hub, Detachable Front Filter, USB-C, White

  1. Home
  2. Components
  3. Fractal Design Meshify 2 (White TG) Gaming Case w/ Clear Glass Window, E-ATX, Angular Mesh Front, 3 Fans, Fan Hub, Detachable Front Filter, USB-C, White

  • Fractal Design Meshify 2 (White TG) Gaming Case w/ Clear Glass Window, E-ATX, Angular Mesh Front, 3 Fans, Fan Hub, Detachable Front Filter, USB-C, White

  • SKU: FD-C-MES2A-05
  • EAN: 7340172702467
  • Form Factor: E-ATX
  • Power Supply Wattage: No PSU
  • Motherboard Support : E-ATX (max 285mm)/ ATX/ Micro ATX/ Mini ITX
  • Expansion Slots : 7 + 2 Expansion slots
  • 2 Years warranty
$252.75
  • SHARE:
  •
  •
  •
  •   TrustPilot
WHY BUY WITH SAFEPCDIRECT ?
Certificate 1
Certificate 2
Certificate 3
Certificate 4

Related Products

Product Details

Form FactorE-ATX
Power Supply Wattage
No PSU
Motherboard Support
E-ATX (max 285 mm), ATX, Micro ATX, Mini ITX
Connectors / Controls
1 x USB 3.1 Gen 2 Type-C
2 x USB 3.0
2 x USB 2.0
Audio I/O
Power button
Reset button
Drive Bays6 x 3.5"/2.5" - 14 positions total + 1 Multibracket
2 2.5" - 4 positions total
Expansion Slots
7 + 2 Expansion slots
Cooling System
Included
Front: 2 x Dynamic X2 GP-14 140mm fans
Rear: 1 x Dynamic X2 GP-14 140mm fan

Fan Mounts
Front: 3 x 120 / 140 mm
Top: 3 x 120 / 140 mm
Rear: 1 x 120 / 140 mm
Bottom: 2 x 120 / 140 mm

Water Cooling options:
Front: Up to 360 / 280 mm radiator
Top: Up to 360 / 420 mm
Rear: 120 mm radiator
Bottom: Up to 240 / 280 mm radiator
ColourWhite
MaterialLeft side panel: Tempered Glass
Right side panel: Steel
CompatabilityGFX Card:
Storage layout: 315 mm
Open layout: 491 mm (467 mm w/ front fan)

Max CPU Cooler:
185 mm

PSU:
250 mm (with HDD cage installed)
Weight/Dimensions10.1 kg
(LxWxH) 542 x 240 x 474 mm
w/o feet/protrusions/screws: 541 x 240 x 454 mm
Package weight
12.3500 kg
Warranty2 year
ConditionBrand New



The new Meshify 2 is a classic evolved with focus on distinctive design, spacious interior and rugged good looks.



  • Iconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
  • Spacious and extensively adaptable dual-layout interior easily accommodates large motherboards up to and including 285 mm E-ATX
  • Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base in the default Open Layout
  • Includes 6 HDD/SSD trays, 2 SSD brackets, and 12 universal Multibrackets for mounting up to 10 drives
  • Expandable to 14 trays and 4 SSD brackets with 3 Multibrackets installed in the top and bottom for a max of up to 21 drives in Storage Layout

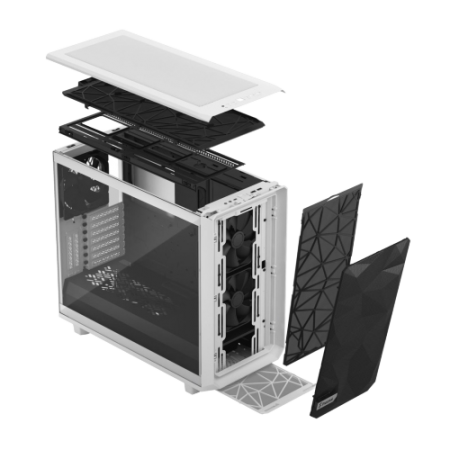

  • New chassis design opens up to fully expose the case interior on three sides for totally unhindered installation and cable routing
  • New front nylon filter that can be removed for increased airflow
  • New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
  • Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
  • Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans directly in line with cable channels along the edge of the case
  • Outstanding cooling capacity with a total of nine 120/140 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
  • Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board
  • Versatile Multibracket that converts any unused fan position to an HDD, SSD or pump mount
  • Two vertical GPU slots for use with the Flex VRC-25 PCIe riser, available separately
  • Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access
  • Ventilated PSU shroud with two-part removable cover for optimal cable concealment and front radiator support
  • Tool-less, top-latching side panels allow quick access while preventing accidental drops
  • Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup

Detachable front filter

  • New front nylon filter that can be removed for increased airflow
  • New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
  • Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans

Superlative storage

  • Convert to Storage Layout and install up to 11 HDDs alongside four dedicated SSDs mounts (6x SSD/HDD trays, 2x SSD brackets and 1x Multibracket included)
  • Transformable interior design utilizing a movable wall for enhancing custom builds
  • The included Multibracket lets you convert any unused fan position to an HDD, SSD or pump mount
  • Tool-less, top-latching side panels allow quick access while preventing accidental drops

Extremely flexible

  • Fits your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout
  • Support for radiators up to 360 mm (front), 420 mm (top) and 280 mm (base)
  • Easily holds large motherboards up to and including 285 mm E-ATX
ManufacturerFractal Design
ColorWhite
Drive Bays 3.5"5
Drive Bays 5.25"Not Specified
Case Form FactorE- ATX
Front PortsUSB
MaterialSteel
Supported Motherboard TypeEATX (82)
USB 2.0 Ports Qty2
ConditionBrand New
RefurbishedNo
