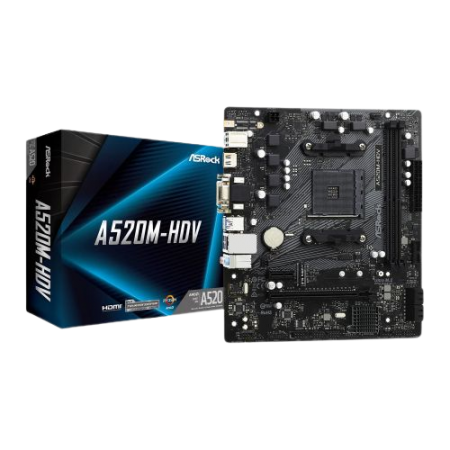

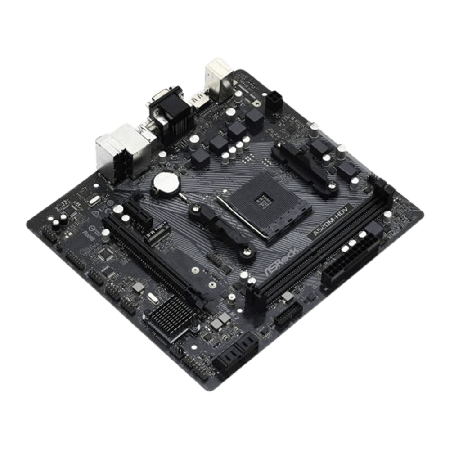

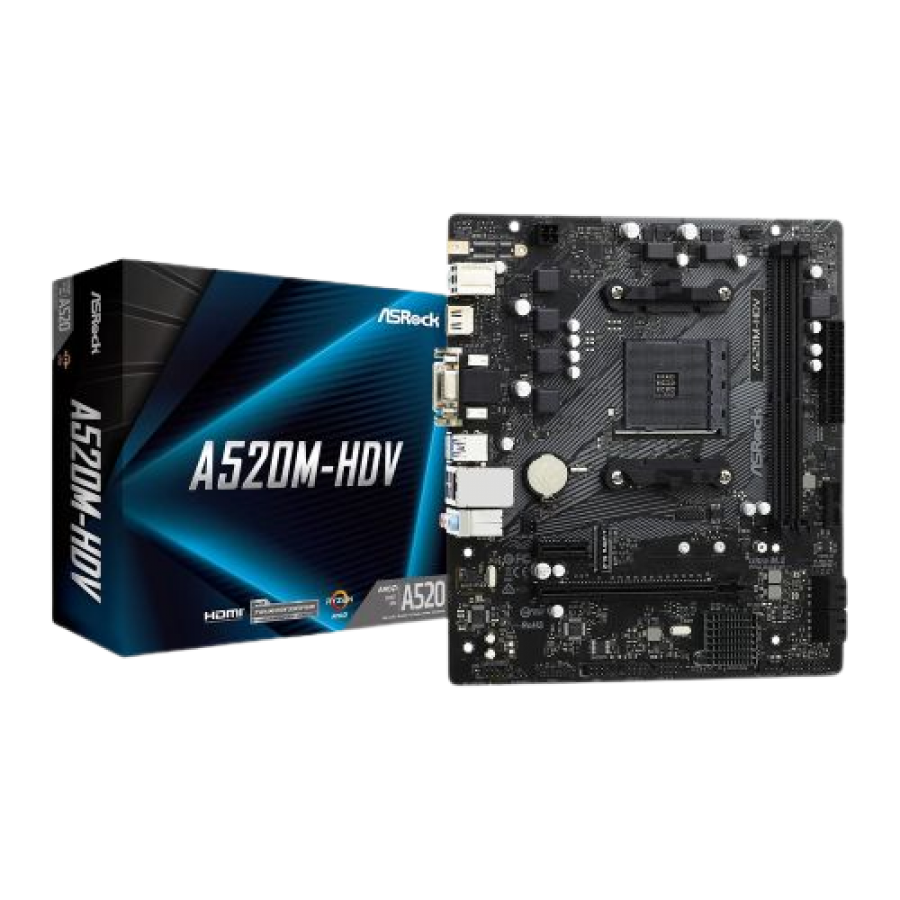

  • Asrock A520M-HDV, AMD A520, AM4, Micro ATX, 2 DDR4, VGA, DVI, HDMI, M.2

  • SKU: A520M-HDV
  • EAN: 4399408026948
  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: AMD AM4
  • Chipset: Asrock A520M-HDV
  • 2- Year Warranty
$88.45
  • SHARE:
  •
  •
  •
  •   TrustPilot
WHY BUY WITH SAFEPCDIRECT ?
Certificate 1
Certificate 2
Certificate 3
Certificate 4
Product Details
TypeDesktop
SocketAMD AM4
Form FactorMicro ATX
ChipsetAMD A520
CPU Support*Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs
Maximum Memory64GB
RAM Slots2 x DIMM
RAM Speed4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
GraphicsIntegrated Graphics Processor
Graphics Port1 x HDMI
1 x VGA
PCI/PCI Express1 x PCIe 3.0 x16 Slot (PCIE2: x16 mode)
1 x PCIe 3.0 x1
USB Ports Supported6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)
Storage4 x SATA III
1 x M.2 (2242/2260/2280) - SATA & PCIe
LANGB LAN
Back Panel I/o Ports1 x PS/2 Mouse/Keyboard
1 x D-Sub
1 x DVI-D
1 x HDMI
2 x USB 2.0
4 x USB 3.2 Gen1
1 x RJ-45 LAN
HD Audio Jacks
Internal I/O Connectors1 x SPI TPM
1 x COM Port
1 x Chassis Intrusion and Speaker
1 x CPU Fan
2 x Chassis Fan
1 x 24 pin ATX
1 x 4 pin 12V
1 x Front Audio
2 x USB 2.0
1 x USB 3.2 Gen1
Accessories2 x SATA Data Cables
1 x Screw for M.2 Socket
Package Weight0.7920 kg
Warranty2 Year Replacement Warranty
Condition Brand New


  • Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors(3000 and 4000 Series Processors)
  • 6 Phase Power Design
  • Supports DDR4 4733+ (OC)
  • 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
  • Graphics Output Options: D-Sub, DVI-D, HDMI
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
  • 4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3)
  • 6 x USB 3.2 Gen1(4 x Rear, 2 x Front)
  • 6 x USB 2.0(2 x Rear, 4 x Front)
  • Realtek Gigabit LAN
ManufacturerAsrock
ColorBlack
Graphics ProcessorAMD
Motherboard Form FactorMicro ATX
ChipsetNo
Motherboard TypeDesktop
Maximum Memory64GB
Processor SocketSocket AM4
RAM TechnologyDDR4 (Dual Channel)
RAM Slots2 X DIMM
ConditionBrand New
RefurbishedNo
