  • Asrock H570 STEEL LEGEND, Intel H570, 1200, ATX, 4 DDR4, XFire, HDMI, DP, 2.5G LAN, RGB, 3x M.2

  • SKU: H570 STEEL LEGEND
  • EAN: 4710483934100
  • Motherboard Type: Desktop
  • Form Factor: ATX
  • Socket: Intel 1200
  • Chipset: Intel H570
  • 3 years Warranty
$195.88
  • SHARE:
  •
  •
  •
  •   TrustPilot
WHY BUY WITH SAFEPCDIRECT ?
Certificate 1
Certificate 2
Certificate 3
Certificate 4

Product Details

Type
Desktop
SocketIntel 1200
ChipSet
Intel H570
Form Factor
ATX
USB Ports Supported 2 x USB 3.2 Gen2 (1 Type-A & 1 Type-C at back)
6 x USB 3.2 Gen1 (2 at back, 4 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)
1 x USB 3.2 Gen2x2 connector Type-C at mid-board
Memory TypeDDR4 (Dual Channel)
GraphicsIntegrated Graphics
Graphics Port

1 x HDMI
1 x DisplayPort

Audio7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Internal I/O connectors
1 x SPI TPM
1 x Power LED and Speaker
2 x RGB LED
2 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
4 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x 4 pin 12V
1 x Front Audio
1 x Thunderbolt AIC
2 x USB 2.0
2 x USB 3.2 Gen1
1 x Front Panel Type C USB 3.2 Gen2x2 Header

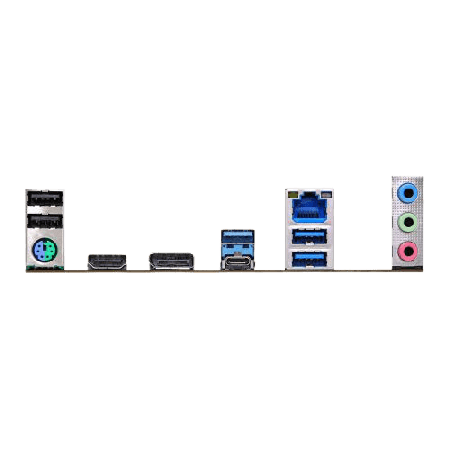

Back Panel I/o Ports1 x PS/2 Mouse/Keyboard
1 x HDMI
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen1
2 x USB 2.0
1 x RJ-45 LAN
HD Audio Jacks
LAN2.5GB LAN
PCL Express
1 x PCIe 4.0 x16
1 x PCIe 3.0 x16
3 x PCIe 3.0 x1
Warranty3 Years
Condition New



Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.

Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
8 Phase Power Design
Supports DDR4 4800MHz (OC)
1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 3 x PCIe 3.0 x1
1 x M.2 Key-E for WiFi
Graphics Output Options: HDMI, DisplayPort
7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4)
2 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
1 x USB 3.2 Gen2x2 Front Type-C (20Gb/s)
Rear USB 3.2 Gen2 Type A+C (10Gb/s)
6 x USB 3.2 Gen1 (2 x Rear, 4 x Front)
6 x USB 2.0 (2 x Rear, 4 x Front)
Dragon 2.5 Gigabit LAN
ASRock Polychrome SYNC

ManufacturerAsrock
ColorNo
Graphics ProcessorIntel
Motherboard Form FactorATX
ChipsetIntel H570
Motherboard TypeDesktop
Maximum MemoryNo
Processor SocketIntel 1200
RAM TechnologyDDR4 (Dual Channel)
RAM Slots4 X DIMM
ConditionBrand New
RefurbishedNo
