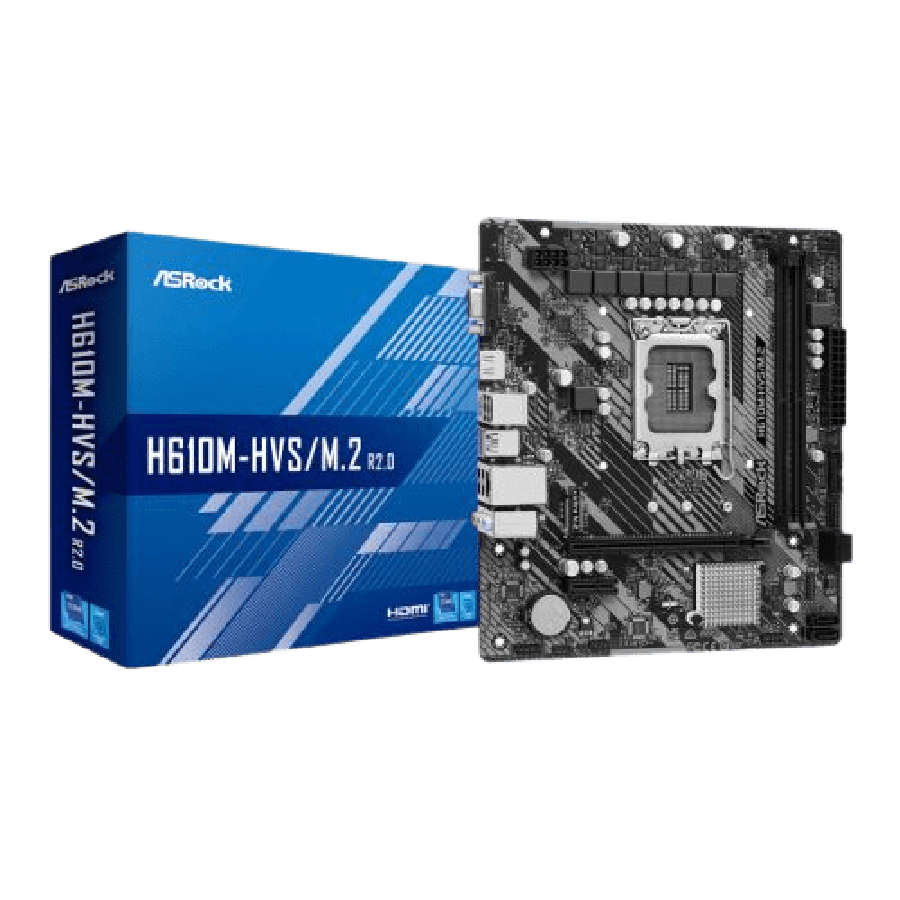

  • Asrock H610M-HVS/M.2 R2.0, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI

  • SKU: H610M-HVS/M.2 R2.0
  • EAN: 9882718973804
  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: Intel 1700
  • Chipset: Asrock H610M-HVS
  • 1- Year Warranty
$101.09
  • SHARE:
  •
  •
  •
  •   TrustPilot
WHY BUY WITH SAFEPCDIRECT ?
Certificate 1
Certificate 2
Certificate 3
Certificate 4
Product Details
TypeDesktop
SocketIntel 1700
ChipSetIntel H610
Form FactorMicro ATX
RAM Slots2 x DIMM
RAM SpeedUp to 3200 MHz
GraphicsIntegrated Graphics
Graphics Port1 x HDMI
1 x VGA
PCI/PCI Express1 x PCIe 4.0 x16
1 x PCIe 3.0 x1
Storage4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe
LANGB LAN
Back Panel I/o Ports1 x PS/2 Mouse/Keyboard
1 x D-Sub
1 x HDMI
2 x USB 3.2 Gen1
4 x USB 2.0
1 x RJ-45 LAN
HD Audio Jacks
Internal I/O Connectors1 x SPI TPM
1 x Chassis Intrusion and Speaker
1 x CPU Fan
1 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Audio
1 x USB 2.0
1 x USB 3.2 Gen1
AccessoriesQuick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket
Package Weight0.8040 kg
Warranty1 Year
Condition Brand New


  • H610M-HVS/M.2 R2.0



    • Supports 12th Gen Intel® Core™ Processors (LGA1700)
    • 7 Phase Power Design
    • Supports DDR4 3200MHz
    • 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
    • Graphics Output Options: HDMI, D-Sub
    • Realtek ALC897 7.1 CH HD Audio Codec
    • 4 SATA3
    • 1 Ultra M.2 (PCIe Gen3 x4)
    • 4 USB 3.2 Gen1 (2 Rear, 2 Front)
    • 6 USB 2.0 (4 Rear, 2 Front)
    • Realtek Gigabit LAN
ManufacturerAsrock
ColorNo
Graphics ProcessorIntel
Motherboard Form FactorMicro ATX
ChipsetNo
Motherboard TypeDesktop
Maximum Memory64GB
Processor SocketNo
RAM TechnologyDDR4 (Dual Channel)
RAM Slots2 X DIMM
ConditionBrand New
RefurbishedNo
