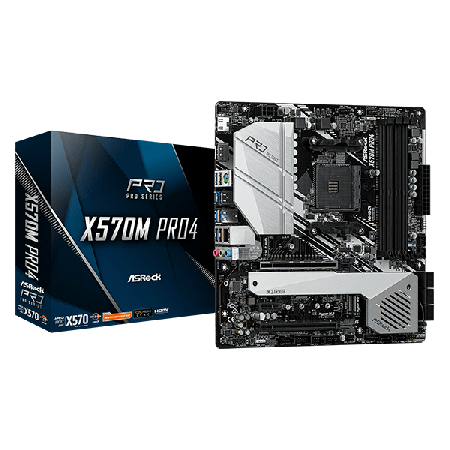

  • Asrock X570M PRO4, AMD X570, AM4, Micro ATX, 4 DDR4, HDMI, DP, XFire, PCIe4, RGB Lighting, M.2

  • SKU: X570M PRO4
  • EAN: 4717677338812
  • Motherboard Type: Desktop
  • Socket: AM4
  • Chipset: AMD X570
  • Maximum Memory: 128GB
  • Integrated AMD Radeon
  • 3 Years Warranty
$259.07
  • SHARE:
  •
  •
  •
  •   TrustPilot
WHY BUY WITH SAFEPCDIRECT ?
Certificate 1
Certificate 2
Certificate 3
Certificate 4

Product Details

TypeDesktop
SocketAM4
ChipsetAMD X570
Maximum Memory128GB DDR4
RAM Speed

Ryzen Matisse CPUs:
4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC)

3600(OC) / 3466(OC) / 3200/2933/2667/2400/2133 MHz

Ryzen Pinnacle Ridge CPUs:
3466+(OC) / 3200(OC) / 2933/2667/2400/2133 MHz

AMD Picasso CPUs:
3466+(OC) / 3200(OC) / 2933/2667/2400/2133 MHz

Memory TypeDDR4 (Dual Channel)
Storage8 x SATA III
1 x Hyper M.2 (2242/2260/2280) - PCIe
1 x Hyper M.2 (2230/2242/2260/2280) - SATA & PCIe
Graphics

Integrated AMD Radeon R Series Graphics in

the 7th Generation A-Series APU

Graphics Port1 x DisplayPort 1.2
1 x HDMI
Multi GPU SupportSupports AMD CrossFireX Technology
Audio
Realtek ALC887-VD2 8-Channel High Definition Audio CODEC
USB Port Supported4 x USB 3.1 Gen 1,2 x USB 3.1 Gen 2,2 x USB 3.1 Gen 16 x USB 2.0
M.2 SlotsYes
Internal I/O connectors1 x COM Port
1 x SPI TPM
1 x Power LED and Speaker
1 x AMD Fan LED
1 x RGB LED
1 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
3 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Audio
1 x AMD LED Fan USB
1 x Thunderbolt AIC
2 x USB 2.0
1 x USB 3.2 Gen1
Back Panel I/o Ports3 x Antenna
1 x PS/2 Mouse/Keyboard
1 x HDMI
1 x DisplayPort 1.2
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
6 x USB 3.2 Gen1
1 x RJ-45 LAN
HD Audio Jacks
PCL Express
Ryzen Matisse CPUs:
2 x PCIe 4.0 x16
Ryzen Pinnacle Ridge CPUs:
2 x PCIe 3.0 x16
AMD Picasso CPUs:
2 x PCIe 3.0 x16
1 x PCIe 4.0 x1
LANGB LAN
AccessoriesUsers manual
I/O Shield
2 x SATA Data Cables
3 x Screws for M.2 Sockets
1 x Standoff for M.2 Socke
Package Weight1.4000 kg
Warranty3 Years
Condition New



Dual Hyper M.2 For SSD

Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Steel Slot with New Gen PCI-Express 4.0

The next generation PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation. ASRock’s exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also making sure heavy graphics cards to be well-installed in the PCI-E slot safely.

Dual USB 3.2 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

USB 3.2 Gen2 doubles the data transfer rate

USB 3.2 Gen2 Type-C doubles the charge speed!

Rule your own Lighting Way - Polychrome RGB

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Intel LAN

Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

Super Alloy Motherboard

XXL Aluminum Alloy Heatsink
Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.

ELNA Audio Caps

Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
ManufacturerAsrock
ColorNo
Graphics ProcessorAMD
Motherboard Form FactorMicro ATX
ChipsetAMD X570
Motherboard TypeDesktop
Maximum Memory128GB
Processor SocketSocket AM4
RAM TechnologyDDR4 (Dual Channel)
RAM Slots4 X DIMM
ConditionBrand New
RefurbishedNo
