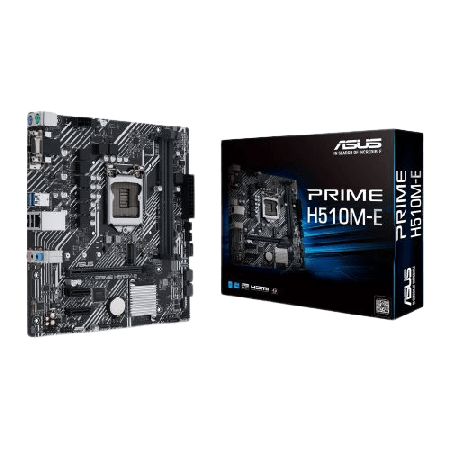

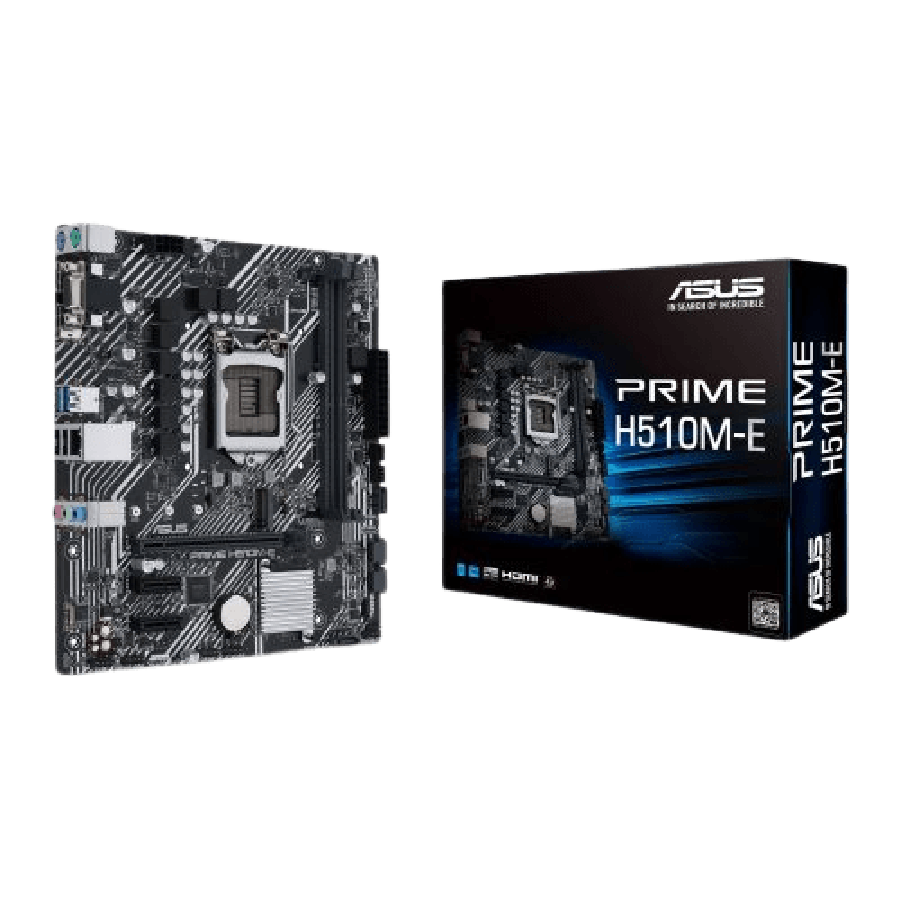

  • Asus PRIME H510M-E, Intel H510, 1200, Micro ATX, 2 DDR4, VGA, HDMI, DP, M.2

  • SKU: 90MB17E0-M0EAY0
  • EAN: 8636200192751
  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: Intel 1200 - Rocket Lake
  • Chipset: Asus PRIME H510M-E
  • 2- Year Warranty
$154.17
  • SHARE:
  •
  •
  •
  •   TrustPilot
WHY BUY WITH SAFEPCDIRECT ?
Certificate 1
Certificate 2
Certificate 3
Certificate 4
Product Details
TypeDesktop
SocketIntel 1200 - Rocket Lake
ChipSetIntel H510
Form Factor
Micro ATX
RAM Slots2 x DIMM
RAM SpeedUp to 3200(OC)
GraphicsIntegrated Graphics
Graphics Port1 x HDMI
1 x VGA
1 x DisplayPort
PCI/PCI Express1 x PCIe 4.0 x16
1 x PCIe 3.0 x1
Storage4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe
LANGB LAN
Back Panel I/o Ports2 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x DispIayPort
1 x D-Sub port
1 x HDMI
1 x Intel I219-1Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard
1 x PS/2 Mouse
Internal I/O Connectors1 x 4-pin CPU Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
1 x RGB
1 x Clear CMOS
1 x COM Port
1 x Front Audio 1 x S/PDIF Out
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel
AudioRealtek ALC897/887 7.1 Surround Sound High
Definition Audio CODEC
Package Weight0.8500 kg
Warranty2 Year
Condition Brand New


  • Intel® H510 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 Type A, SATA 6Gbps, COM header, RGB header


    • Intel® LGA 1200 socket: Ready for 11th and 10th Gen Intel® Processors
    • Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet and USB 3.2 Gen 1 Type-A
    • Comprehensive cooling: PCH heatsink and Fan Xpert
    • 5X Protection III: Multiple hardware safeguards for all-round protection
ManufacturerAsus
ColorNo
Graphics ProcessorIntel
Motherboard Form FactorMicro ATX
ChipsetNo
Motherboard TypeDesktop
Maximum Memory64GB
Processor Socket1200-Rocket Lake
RAM TechnologyDDR4 (Dual Channel)
RAM Slots2 X DIMM
ConditionBrand New
RefurbishedNo
