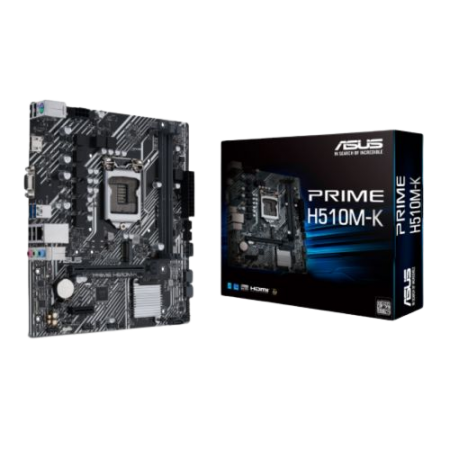

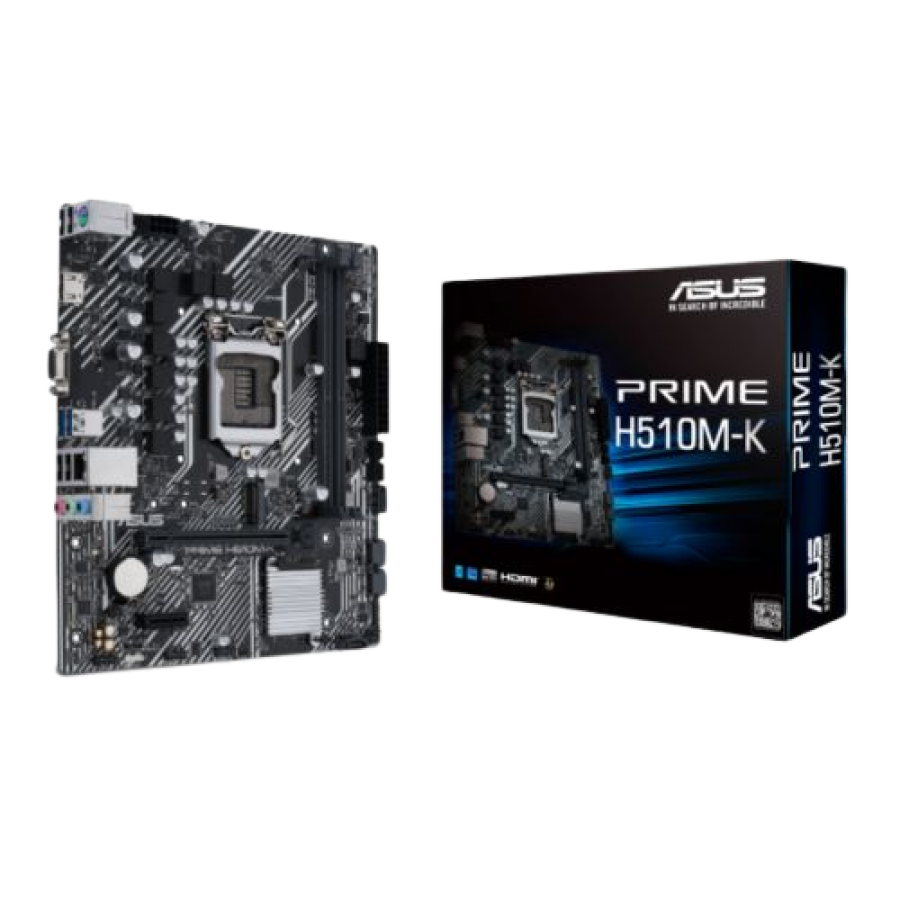

Asus PRIME H510M-K, Intel H510, 1200, Micro ATX, 2 DDR4, VGA, HDMI, M.2

  1. Home
  2. Asus PRIME H510M-K, Intel H510, 1200, Micro ATX, 2 DDR4, VGA, HDMI, M.2

  • Asus PRIME H510M-K, Intel H510, 1200, Micro ATX, 2 DDR4, VGA, HDMI, M.2

  • SKU: 90MB17N0-M0EAY0
  • EAN: 3725208873863
  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: Intel 1200 - Rocket Lake
  • Chipset: Asus PRIME H510M-K
  • 2- Year Warranty
$113.73
Out of Stock
    • SHARE:
    •
    •
    •
    •   TrustPilot
    WHY BUY WITH SAFEPCDIRECT ?
    Certificate 1
    Certificate 2
    Certificate 3
    Certificate 4

    Related Products

    Product Details
    TypeDesktop
    SocketIntel 1200 - Rocket Lake
    ChipSetIntel H510
    Form Factor
    		Micro ATX
    RAM Slots2 x DIMM
    RAM SpeedUp to 3200(OC)
    GraphicsIntegrated Graphics
    Graphics Port1 x HDMI
    1 x VGA
    1 x DisplayPort
    PCI/PCI Express1 x PCIe 4.0 x16
    1 x PCIe 3.0 x1
    Storage4 x SATA III
    1 x M.2 (2242/2260/2280) - PCIe
    LANGB LAN
    Back Panel I/o Ports2 x USB 3.2 Gen1 Type-A
    2 x USB 2.0
    1 x DispIayPort
    1 x D-Sub port
    1 x HDMI
    1 x Intel I219-1Gb Ethernet
    3 x Audio jacks
    1 x PS/2 Keyboard
    1 x PS/2 Mouse
    Internal I/O Connectors1 x 4-pin CPU Fan
    2 x 4-pin Chassis Fan
    1 x 24-pin Main
    1 x 8-pin +12V
    1 x M.2 (Key M)
    4 x SATA 6Gb/s
    1 x USB 3.2 Gen1
    2 x USB 2.0
    1 x RGB
    1 x Clear CMOS
    1 x COM Port
    1 x Front Audio 1 x S/PDIF Out
    1 x Speaker
    1 x SPI TPM (14-1pin)
    1 x 10-1 pin System Panel
    AudioRealtek ALC897/887 7.1 Surround Sound High
    Definition Audio CODEC
    Package Weight0.8500 kg
    Warranty2 Year
    Condition Brand New


    Intel® H510 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet, HDMI, D-Sub, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, COM header, and RGB header


    • Intel® LGA 1200 socket: Ready for 11th and 10th Gen Intel® Processors
    • Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet and USB 3.2 Gen 1
    • Comprehensive cooling: PCH heatsink and Fan Xpert
    • 5X Protection III: Multiple hardware safeguards for all-round protection
    ManufacturerAsus
    ColorNo
    Graphics ProcessorIntel
    Motherboard Form FactorMicro ATX
    ChipsetNo
    Motherboard TypeDesktop
    Maximum Memory64GB
    Processor Socket1200-Rocket Lake
    RAM TechnologyDDR4 (Dual Channel)
    RAM Slots2 X DIMM
    ConditionBrand New
    RefurbishedNo
