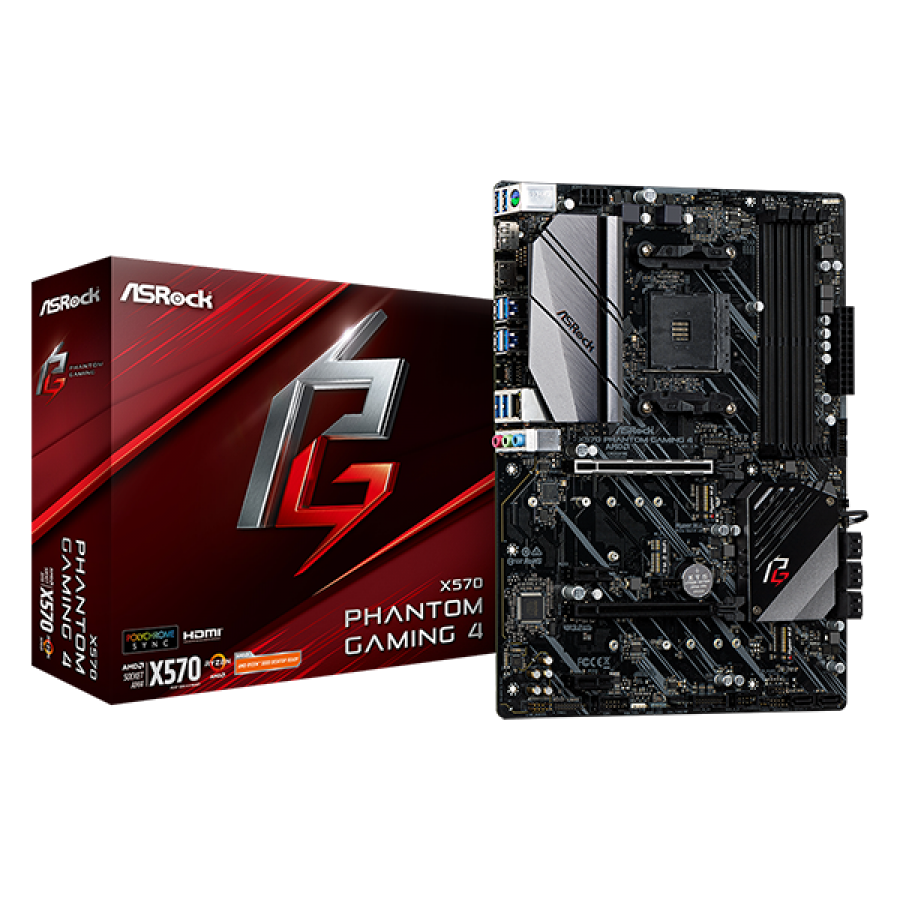

  • Asrock X570 Phantom Gaming 4, AMD X570, AM4, ATX, 4 DDR4, HDMI, DP, XFire, PCIe4, RGB Lighting

  • SKU: X570 PHANTOM GAMING 4
  • EAN: 4717677338881
  • Type: Desktop
  • Socket: AM4
  • Chipset: AMD X570
  • Maximum Memory: 128GB
  • Integrated AMD Radeon Vega Series
  • 3 Years Warranty
$214.83
Out of Stock
    • SHARE:
    •
    •
    •
    •   TrustPilot
    WHY BUY WITH SAFEPCDIRECT ?
    Certificate 1
    Certificate 2
    Certificate 3
    Certificate 4

     Product Details:



    Type
    Desktop
    SocketAM4
    ChipsetAMD X570
    Maximum Memory128GB
    RAM Speed

    AMD Ryzen series CPUs (Matisse)
    4066+(OC)/3466(OC)/3200/2933/2667/2400/2133

    AMD Ryzen series CPUs (Picasso)
    3466+(OC)/3200(OC)/2933/ 2667/2400/2133

    Memory TypeDDR4 (Dual Channel)
    Storage8 x SATA III
    1 x Hyper M.2 (2230/2242/2260/2280/22110) - PCIe
    1 x Hyper M.2 (2230/2242/2260/2280/22110) - SATA & PCIe
    PCI ExpressAMD Ryzen series CPUs (Matisse)
    2 x PCI Express 4.0 x16 Slots

    AMD Ryzen series CPUs (Pinnacle Ridge)
    2 x PCI Express 3.0 x16 Slots

    AMD Ryzen series CPUs (Picasso)
    2 x PCI Express 3.0 x16 Slots
    GraphicsMD Radeon Vega Series Graphics in Ryzen Series APU
    Multi GPU SupportsSupports AMD Quad CrossFireX
    Graphics Port1 x HDMI
    1 x DisplayPort USB 1.2
    Audio
    7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
    USB Port Supports2 x USB 3.2 Gen2 Type-A (at back), 2 x USB 2.0 (at mid-board)
    10 x USB 3.2 Gen1 (6 at back 4 at mid)
    Internal I/O connectors1 x Thunderbolt AIC
    1 x USB 2.0
    2 x USB 3.2 Gen1
    Front Panel I/O Ports1 x COM Port
    1 x SPI TPM
    1 x Power LED and Speaker
    2 x RGB LED
    1 x Addressable LED
    1 x CPU Fan
    1 x CPU/Water Pump Fan
    3 x Chassis/Water Pump Fan
    1 x 24 pin ATX
    1 x 8 pin 12V
    1 x Front Audio
    1 x AMD LED Fan USB
    Back Panel I/o Ports3 x Antenna
    1 x PS/2 Mouse/Keyboard
    1 x HDMI
    1 x DisplayPort 1.2
    2 x USB 3.2 Gen2 Type-A
    6 x USB 3.2 Gen1
    1 x RJ-45 LAN
    HD Audio Jacks
    WirelessWi-Fi with MU-MIMO 802.11 a/b/g/n/ac
    Supports dual frequency band 2.4/5 GHz
    Up to 1.73Gbps transfer speed
    Bluetooth v5.0
    LANDual GB LAN
    AccessoriesUsers manual
    I/O Shield , Support CD
    2 x SATA Data Cables
    3 x Screws for M.2 Sockets
    Package Weight1.7500 kg
    Warranty3 Years
    Condition New



    Steel Slot with New-Gen PCI Express 4.0

    The next generation PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation. ASRock’s exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also making sure heavy graphics cards to be well-installed in the PCI-E slot safely.


    Dual Hyper M.2 For SSD

    Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.


    Rule your own Lighting Way

    ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.


    I/O Power Phase Design

    Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.


    Post Status Checker

    An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.


    2 x USB3.2 Gen2

    Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.2 Gen2 technology advances the data transfer rate up to 10Gb/s. ASRock provides 2 x USB 3.2 Gen2 ports onboard allows you to have a stunning data transfer experience.



    Super Alloy Motherboard

    XXL Aluminum Alloy Heatsink
    Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

    Premium 50A Power Choke
    Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

    Sapphire Black PCB
    Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

    High Density Glass Fabric PCB
    High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

    2oz Copper PCB
    Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.



    ELNA Audio Caps

    Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.



    M.2 (KEY E) For WiFi

    Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.


    Full Spike Protection

    Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.


    Live Update & APP Shop

    ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
    Super Alloy Motherboard.


    • Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors
    • 10 Power Phase Design
    • Supports DDR4 4066+ (OC)
    • 2 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2(Key E) For WiFi
    • AMD Quad CrossFireX™ and CrossFireX™
    • Graphics Output Options: HDMI, DisplayPort
    • 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), ELNA Audio Caps
    • 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3),
    • 1 Hyper M.2 (PCIe Gen4 x4)
    • 2 USB 3.2 Gen2 (Rear Type-A), 10 USB 3.2 Gen1 (4 Front, 6 Rear)
    • Intel® Gigabit LAN
    • ASRock Polychrome SYNC



    ManufacturerAsrock
    ColorNo
    Graphics ProcessorAMD
    Motherboard Form FactorATX
    ChipsetAMD X570
    Motherboard TypeDesktop
    Maximum Memory128GB
    Processor SocketSocket AM4
    RAM TechnologyDDR4 (Dual Channel)
    RAM Slots4 X DIMM
    ConditionBrand New
    RefurbishedNo
