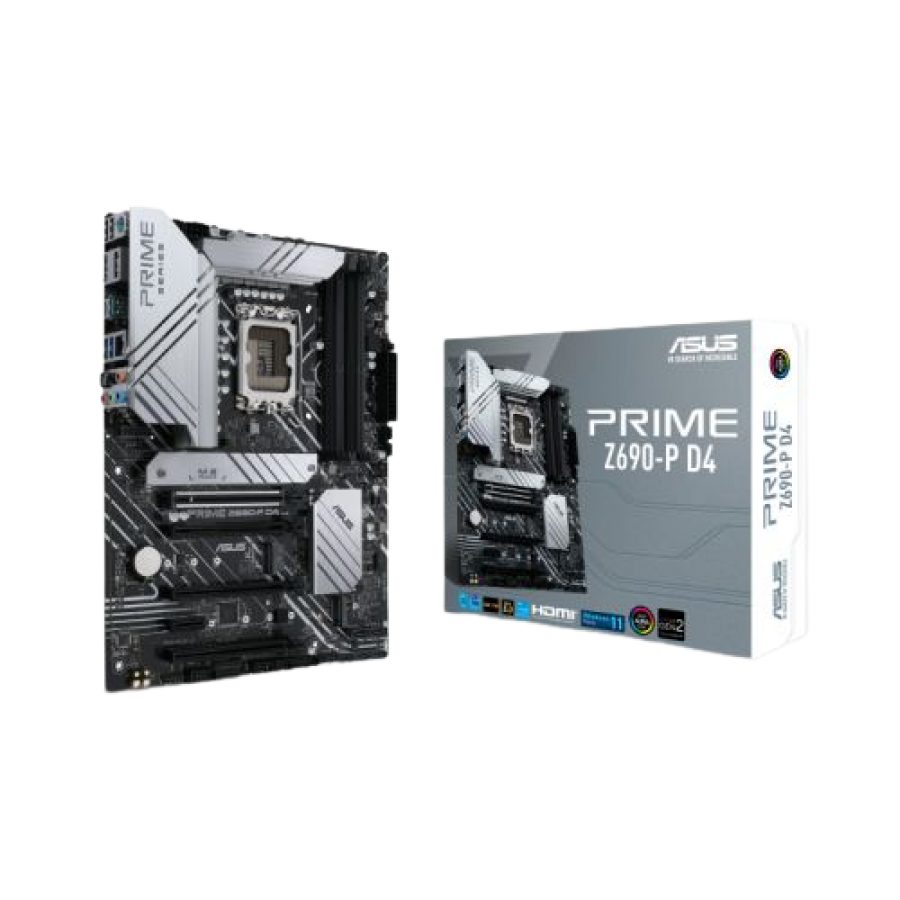

Asus PRIME Z690-P D4, Intel Z690, 1700, ATX, 4 DDR4, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2

  1. Home
  2. Motherboard
  3. Motherboard - Intel
  4. Asus PRIME Z690-P D4, Intel Z690, 1700, ATX, 4 DDR4, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2

  • Asus PRIME Z690-P D4, Intel Z690, 1700, ATX, 4 DDR4, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2

  • SKU: 90MB18P0-M0EAY0
  • EAN: 8557711219945
  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: Intel 1700
  • Chipset: Intel Z690
  • 1- Year Warranty
$303.30
Out of Stock
    • SHARE:
    •
    •
    •
    •   TrustPilot
    WHY BUY WITH SAFEPCDIRECT ?
    Certificate 1
    Certificate 2
    Certificate 3
    Certificate 4

    Related Products

    Product Details
    TypeDesktop
    SocketIntel 1700
    ChipsetIntel Z690
    Maximum Memory128GB
    RAM Slots4 x DIMM
    RAM SpeedUp to 5333(OC)
    GraphicsIntegrated Graphics
    Graphics Port1 x HDMI
    1 x DisplayPort
    PCI/PCI Express1 x PCIe 5.0 x16
    1 x PCIe 4.0 x16
    2 x PCIe 3.0 x16
    1 x PCIe 3.0 x1
    Storage4 x SATA III
    1 x M.2 (2242/2260/2280/22110) - PCIe
    1 x M.2 (2242/2260/2280) - PCIe
    1 x M.2 (2242/2260/2280/22110) - SATA & PCIe
    USB Ports Supported1 x USB 3.2 Gen2x2 Type-C (at back)
    1 x USB 3.2 Gen2 Type-A (at back)
    6 x USB 3.2 Gen1 Type-A (2 at back, 4 at mid-board)
    6 x USB 2.0 (2 at back, 4 at mid-board)
    1 x USB 3.2 Gen1 Type-C front panel connector
    LAN2.5GB LAN
    Back Panel I/o Ports1 x USB 3.2 Gen2x2 Type-C
    1 x USB 3.2 Gen2 Type-A
    2 x USB 3.2 Gen1 Type-A
    2 x USB 2.0
    1 x DisplayPort
    1 x HDMI
    1 x V-M.2 slot (Key E)
    1 x Realtek 2.5Gb Ethernet
    5 x Audio jacks
    1 x Optical S/PDIF out
    1 x PS/2 Keyboard/Mouse combo
    Internal I/O Connectors1 x 4-pin CPU Fan
    1 x 4-pin CPU OPT Fan
    1 x 4-pin AIO Pump
    3 x 4-pin Chassis Fan
    1 x 24-pin Main
    1 x 8-pin +12V
    1 x 4-pin +12V
    3 x M.2 (Key M)
    4 x SATA 6Gb/s
    1 x USB 3.2 Gen1 Type-C
    2 x USB 3.2 Gen1
    2 x USB 2.0 3 x Addressable Gen2
    1 x AURA RGB
    1 x Clear CMOS
    1 x COM Port
    1 x Front Panel Audio
    1 x SPI TPM (14-1pin)
    1 x 20-5pin System Panel
    1 x Thunderbolt
    Accessories2 x SATA 6Gb/s cables
    1 x I/O Shield
    1 x M.2 Rubber Package
    2 x M.2 SSD screw packages
    1 x Support DVD
    1 x User guide
    Package Weight1.6500 kg
    Warranty1 Year
    Condition Brand New



      • Intel Z690 (LGA 1700) ATX motherboard with PCIe 5.0, three M.2 slots, 14+1 DrMOS, DDR4, HDMI, DisplayPort, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 1 Type-C, Thunderbolt 4 support and Aura Sync RGB lighting



        • Intel LGA 1700 socket: Ready for 12th gen Intel processors
        • Enhanced power solution: 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
        • Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
        • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
        • Next-gen connectivity: DDR4, PCIe 5.0, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 1 Type-C, Thunderbolt 4 header support
    ManufacturerAsrock
    ColorBlack
    Graphics ProcessorIntel
    Motherboard Form FactorATX
    ChipsetNo
    Motherboard TypeDesktop
    Maximum Memory128GB
    Processor SocketNo
    RAM TechnologyDDR4 (Dual Channel)
    RAM Slots4 X DIMM
    ConditionBrand New
    RefurbishedNo
