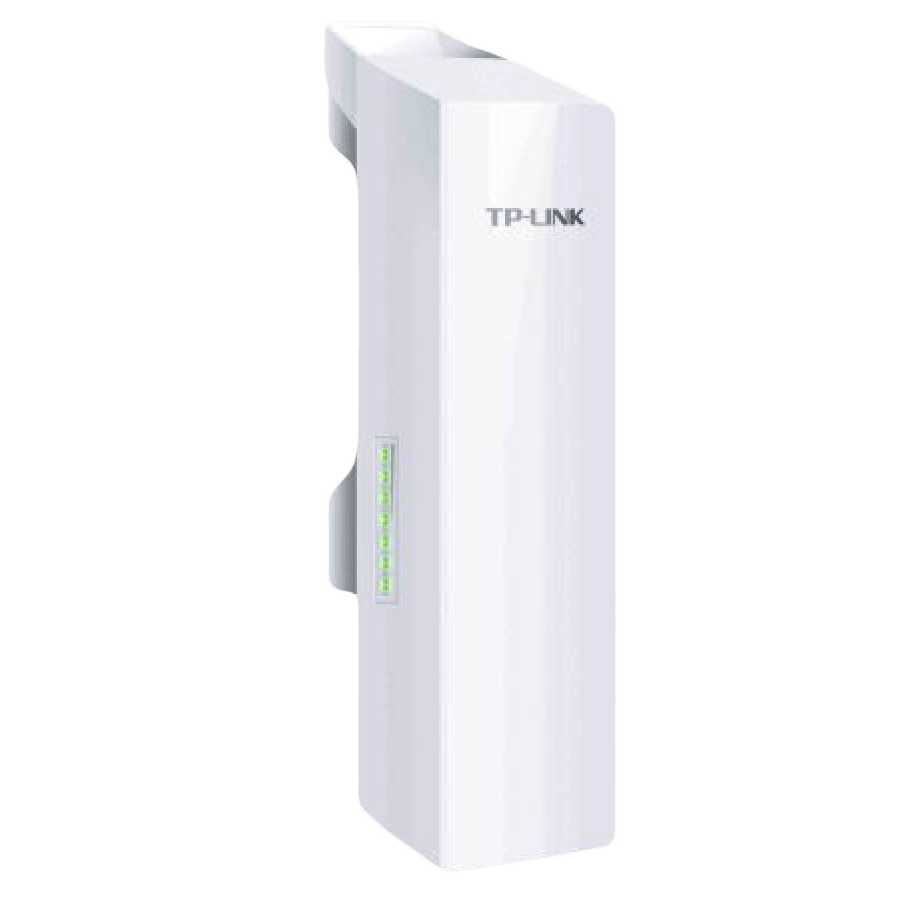

  • TP-Link (CPE210) 2GHz 300Mbps 9dbi High Power Outdoor Wireless Access Point, Weatherproof

  • SKU: CPE210
  • EAN: 6935364071684
  • Type: Access Point
  • 300 Mbps
  • 1 x Ethernet Port
  • IEEE 802.11b/g/n
  • Warranty: Limited Lifetime
$55.59
Out of Stock
    • SHARE:
    •
    •
    •
    •   TrustPilot
    WHY BUY WITH SAFEPCDIRECT ?
    Certificate 1
    Certificate 2
    Certificate 3
    Certificate 4
    TypeAccess Point
    Max Signal Rate300 Mbps
    Dual BandNo
    Interface(s)1 x Ethernet Port
    Passthrough)
    1 x Grounding Terminal
    1 x Reset Button
    Wireless StandardsIEEE 802.11b/g/n (with Pharos MAXtream disabled)
    Antenna

    9DBi 2x2 Dual-polarized Directional Antenna

    Beam Width: 65 degree (H-Plane) / 35 degree (E-Plane)

    Protection

    15KV ESD Protection
    6000V Lightning Protection

    Button(s)Remote Reset Button
    Power SupplyPassive Power over Ethernet via LAN0
    Voltage range: 16-27VDC
    Power Consumption10.5-Watts Max
    Dimensions ( W x D x H )224 x 79 x 60 mm
    WeatherproofYes
    Frequency2.4~2.483GHz
    Wireless RangeSystem-level optimizations for more than 5km
    Wireless SecurityWPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
    SSID Broadcast Enable/Disable
    Multi-SSID with VLAN Tagging (AP mode only)
    Distance/ACK Timeout Setting
    Wireless MAC Address Filter
    ManagementDiscovery and Remote Management
    HTTP/HTTPS Web-based management
    System Log
    SNMP Agent(v2c)
    Ping Watch Dog
    Dynamic DDNS
    SSH Server
    Package ContentsOutdoor Wireless CPE
    24V 1A Passive PoE Adapter
    Pole Mounting Straps
    AC Power Cord
    Installation Guide
    Package TypeRetail
    Package Weight0.7900 kg
    WarrantyLimited Lifetime

    CPE210
    2.4GHz 300Mbps 9dBi Outdoor CPE
    • Built-in 9dBi 2x2 dual-polarized directional MIMO antenna
    • Adjustable transmission power from 0 to 27dBm/500mw
    • System-level optimizations for more than 5km long range wireless transmission
    • TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
    • Centralized Management System – Pharos Control
    • AP / Client / Repeater / AP Router / AP Client Router (WISP) operation modes
    • Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
    What this product does
    TP-LINK’s 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE210 an ideal choice for both business and home users.

    Enterprise Hardware Design
    With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE210 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30C (-22F) to +70C (158F).

    Advanced Antenna System
    Built-in High Gain Dual-Polarized Antenna and dedicated metal reflection ensures higher gain and lower noise interference.

    High Power & High Sensitivity
    In advanced, high power Tx (up to 27dBm/500mw) and high sensitivity Rx (up to -95dBm) radio front-end design breaks down the barriers of traditional Wi-Fi transmission range, making CPE210 an ideal product for outdoor wireless networking applications.

    Professional Outdoor Design
    CPE210 is designed to work in harsh environments, even in some of the world’s most hostile climate conditions.
    Weatherproof Design
    With its outdoor weatherproof enclosure and industrial-level hardware design, CPE210 can continue operating in various weather conditions, such as sunshine, rainfall, wind, snow or extremely low/high temperature environment(-30°C~70°C).
    Double Protection against ESD Attacks
    Besides its grounding terminal, CPE210 offers another way to eliminate ESD attacks via the PoE adapter and Ethernet cable with grounding wire. The CPE210’s additional security measures provide up to 15KV ESD and 6000V lightning protection for more reliable operation.

    TP-LINK MAXtream TDMA Technology
    As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience, to mitigate these effects, the CPE210 uses MAXtream TDMA Technology.

    5km+ Wireless Data Transmission
    Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.

    Pharos Control – Centralized Management System
    CPE210 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

    PharOS
    User-friendly web-based management system allows professionals to apply more specific configurations
    ManufacturerTP-LINK
    ColorNo
    ConnectivityWireless
    Max.Signal Rate300Mbps
    ConditionBrand New
    RefurbishedNo
