| Type | Access Point |
| Max Signal Rate | 1300 Mbps |
| Dual Band | Yes |
| Interface(s) | 1 x Gigabit Ethernet (RJ-45) Port
(Support IEEE802.3at PoE) |
| Wireless Standards | IEEE 802.11ac/n/g/b/a |
| Antenna | Internal Omni
2.4GHz: 3 x 4dBi
5GHz: 3 x 4dBi |
| Button(s) | Reset |
| Power Consumption | 12.7-Watts |
| Power Supply | PoE or External 12VDC / 1.5A Power Supply |
| Dimensions ( W x D x H ) | 180 x 180 x 47.5mm |
| Weatherproof | No |
| Frequency | 5GHz: Up to 1300Mbps
2.4GHz: Up to 450Mbps |
| Wireless Security | Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK |
| Management | EAP Controller Software
Email Alerts
LED ON/OFF Control
Management MAC Access Control
SNMP
Local/Remote Syslog
Telnet
HTTP/HTTPS
L3 Management
Multi-site Management |
| Environment (℃) | Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |

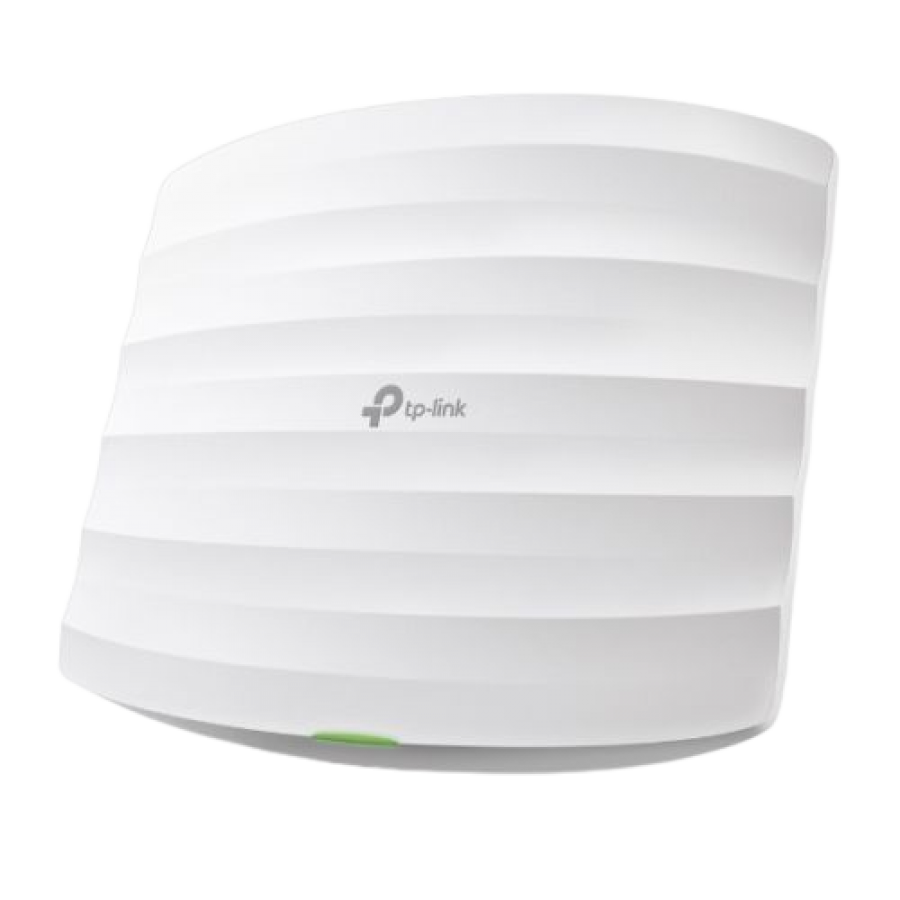

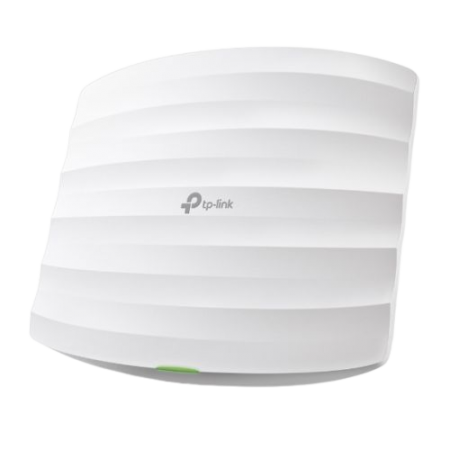

| Package Contents | AC1750 Wireless Dual Band Gigabit Access Point EAP245
Power Adapter
Mounting Kits
Installation Guide |
| Package Type | Retail |
| Package Weight | 1.0000 kg |
| Warranty | Limited Lifetime |
- Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds
- Free EAP Controller Software lets administrators easily manage hundreds of EAPs
- Support Power over Ethernet(802.3at) for convenient and affordable installation
- Captive portal provides a convenient method for guest authentication
- Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
- Load balance ensures large numbers of users have smooth network experiences in high density business networks
Superior Wi-Fi Speeds with 3x3 11ac MIMO technology
The latest generation of 802.11ac Wi-Fi combined with advanced 3x3 MIMO technology ensures superior Wi-Fi speeds and coverage over 2.4GHz and 5GHz wireless bands.
- The EAP245 achieves Wi-Fi speeds of up to 1.75Gbps, with 1300Mbps on the 5GHz band and 450Mbps on the 2.4GHz band.
- The EAP225 provides speeds of up to 867Mbps and 300Mbps on the 5GHz and 2.4GHz respectively.
Easy for Centralized Management
Manage and monitor hundreds of EAPs with ease, all from a single location. The TP-Link Auranet Controller software provides an intuitive management interface. Control and map out the entire network from any connected PC. There’s no added cost, and no need for special training. Business Wi-Fi management has never been so efficient and cost-effective.
Efficient Guest Authentication
Captive portal provides one convenient method of authentication for Wi-Fi guests by requiring users to perform certain actions before network access is allowed. It can Control connections to your network with a voucher system and customized authentication page that can provide a branded experience, advertise to customers, or offer coupons.
Flexible Deployment
The EAP's low profile design and easy mount chassis make it easy to install on any wall or ceiling surface and allow it to blend in with most interior decorating styles. EAP devices also support Power over Ethernet (PoE), making deployment effortless and flexible.
Unified Wi-Fi for Multi-user Business Environment
The Auranet business-grade 11ac Wi-Fi solution is engineered to handle heavy multi-user usage in large areas without encountering the same stability issues found with standard routers and access points purposed for home use. It’s the perfect fit for motels, salons, chain-stores, schools, and restaurants.
Wireless Functions- Multiple SSIDs(Up to 16 SSIDs, 8 for each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- Band Steering
- Load Balance
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
