  • Asrock X299 CREATOR, Intel X299, 2066, ATX, DDR4, NVLink, SLI/XFire, Wi-Fi, Dual LAN (1 x 10GB), TB 3 Type-C, 3x M.2

  • SKU: X299 CREATOR
  • EAN: 7481973576960
  • Motherboard Type: Desktop
  • Form Factor: ATX
  • Socket: Intel 2066
  • Chipset: Intel X299
  • 3 years Warranty
$572.49
  • SHARE:
  •
  •
  •
  •   TrustPilot
WHY BUY WITH SAFEPCDIRECT ?
Certificate 1
Certificate 2
Certificate 3
Certificate 4

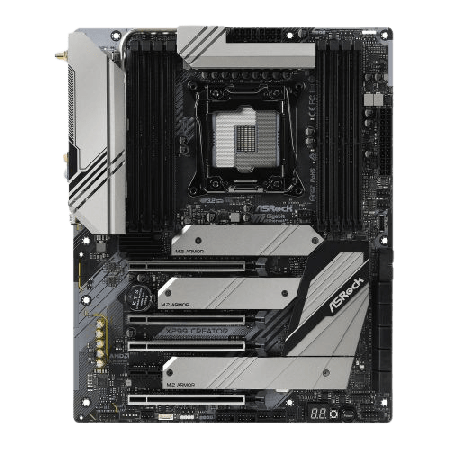

Asrock X299 CREATOR, Intel X299, 2066, ATX, DDR4, NVLink, SLI/XFire, Wi-Fi, Dual LAN (1 x 10GB), TB 3 Type-C, 3x M.2


Product Details

Product Description
Asrock X299 CREATOR, Intel X299, 2066, ATX, DDR4, NVLink, SLI/XFire, Wi-Fi, Dual LAN (1 x 10GB), TB 3 Type-C, 3x M.2
Motherboard Type
Desktop
Form Factor
ATX
SocketIntel 2066
Chipset
Intel X299
RAM Technology
DDR4 (Quad Channel)
RAM Slots
8 x DIMM
RAM Speeds
4200+(OC)* / 4000(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 MHz
Maximum Memory
256GB
Graphics
-
Graphics Ports
-
Multi-GPU Support
Supports AMD 3-Way CrossFireX
Supports NVIDIA 3-Way SLI
Supports NVIDIA NVLink
Support NVIDIA SLI w/ NVIDIA Quadro card
PCI/PCI Express
4 x PCIe 3.0 x16
1 x PCIe 3.0 x1
Storage
10 x SATA III
2 x M.2 Socket (2242/2260/2280) - PCIe
1 x M.2 Socket (2242/2260/2280/22110) - SATA & PCIe
RAID
RAID 0, 1, 5, 10
Wireless
Intel 802.11ax WiFi Module
Supports IEEE 802.11a/b/g/n/ax
Supports Dual-Band (2.4/5 GHz)
Supports wireless connections up to 2.4Gbps
2 antennas - 2 (Transmit) x 2 (Receive) diversity tech
Supports Bluetooth 5.0
Supports MU-MIMO
LAN
Intel 802.11ax WiFi Module
Supports IEEE 802.11a/b/g/n/ax
Supports Dual-Band (2.4/5 GHz)
Supports wireless connections up to 2.4Gbps
2 antennas - 2 (Transmit) x 2 (Receive) diversity tech
Supports Bluetooth 5.0
Supports MU-MIMO
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
USB Ports Supported
2 x USB 3.2 Gen2 Thunderbolt 3 Type-C (at back)
8 x USB 3.2 Gen 1 (4 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)
1 x Front Panel Type- C USB 3.2 Gen2 Header

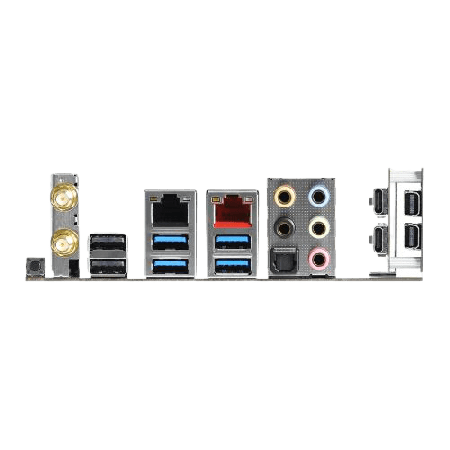

Back Panel I/O Ports
2 x Antenna
1 x Optical SPDIF Out
2 x USB 2.0
2 x USB 3.2 Gen2 Thunderbolt 3 Type-C
2 x Mini DisplayPort Input
4 x USB 3.2 Gen1
2 x RJ-45 LAN
1 x Clear CMOS Button
HD Audio Jacks
Internal I/O Connectors
1 x Virtual RAID On CPU
1 x SPI TPM
1 x Power LED and Speaker
2 x RGB LED
2 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
5 x Chassis/Water Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V
1 x Front Audio
2 x USB 2.0

1 x USB 3.2 Gen1
1 x Front Panel Type- C USB 3.2 Gen2
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button

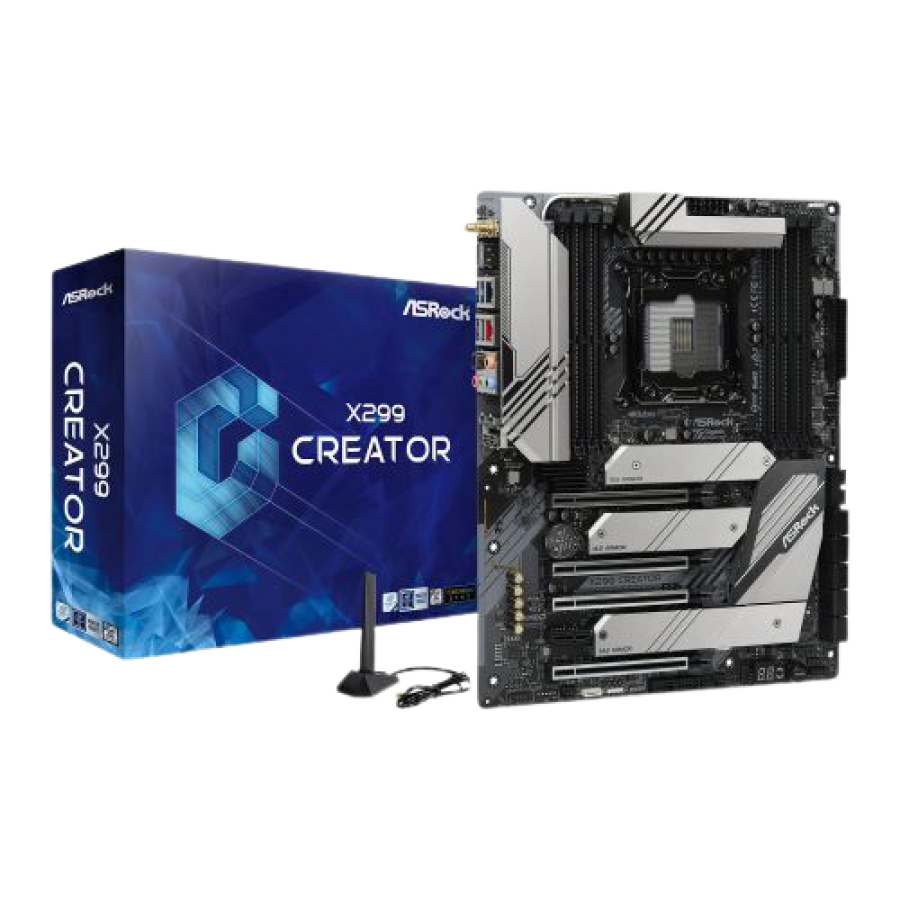

Accessories
4 x SATA Data Cables
1 x ASRock SLI_HB_Bridge_2S Card
1 x ASRock WiFi 2.4/5 GHz Antenna
3 x Screws for M.2 Sockets
3 x Standoffs for M.2 Sockets
Additional Features
See Overview
Package Type
Retail
Package Weight
2.9780 kg
Warranty
3 Year Replacement Warranty

Motherboard Built For Content Creators


  • Supports Intel® Core™ X-Series Processor Family
  • 13 Power Phase Design, Dr. MOS, Dual Power Connectors
  • XXL Aluminum Alloy Heatsink & Heatpipe Design
  • Supports DDR4 4200+(OC)
  • 4 PCIe 3.0 x16, 1 PCIe 3.0 x1
  • NVIDIA® 3-Way SLI™, AMD 3-Way CrossFireX™
  • 10 SATA3, 2 Ultra M.2 (PCIe Gen3 x4), 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 2 Intel® Thunderbolt™ 3 Type-C
  • 1 Front USB 3.2 Gen2 Type-C
  • 6 USB 3.2 Gen1 (2 Front, 4 Rear)
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound™ 4 & DTS Connect
  • AQUANTIA® 10G LAN, Intel® Gigabit LAN
  • Intel® Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.0

ManufacturerAsrock
ColorBlack
Graphics ProcessorIntel
Motherboard Form FactorATX
ChipsetIntel X299
Motherboard TypeDesktop
Maximum MemoryNo
Processor Socket2066
RAM TechnologyDDR4
RAM Slots8 X DIMM
ConditionBrand New
RefurbishedNo
